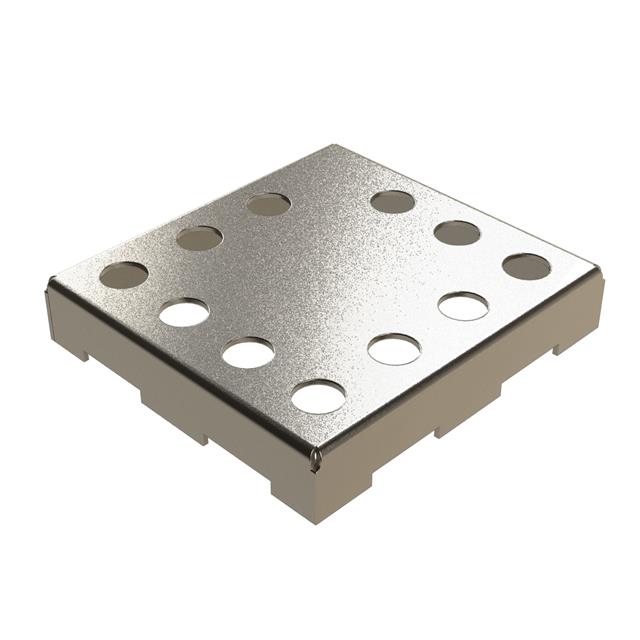

PIC-S-101

Active

3G Shielding Specialties LP

RF SHIELD, 0.5"X0.538"

Search across all available documentation for this part.

Active

3G Shielding Specialties LP

RF SHIELD, 0.5"X0.538"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield CAN 0.538" (13.67mm) X 0.500" (12.70mm) Vent Holes in Pattern Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PIC-S-101	PIC-S Series

Height - Overall	-	3 mm
Height - Overall	-	9.75 mm
Height - Overall [z]	0.1 in	0.1 - 0.276 in
Height - Overall [z]	2.54 mm	0.384 - 7 mm
Length - Overall	-	25.4 - 26.21 mm
Length - Overall	-	30.5 mm
Length - Overall [x]	0.5 in	0.5 - 1.747 in
Length - Overall [x]	12.7 mm	1.201 - 44.37 mm
Mounting Type	Solder	Surface Mount, Solder, Snap Fit
Type	-	Frame, Cover
Ventilation	Vent Holes in Pattern	Non-Vented, Vent Holes in Pattern
Width - Overall	-	38.1 mm
Width - Overall	-	26.21 mm
Width - Overall	-	44.37 mm
Width - Overall	-	1.747 in
Width - Overall [x]	0.538 "	0.538 - 1.559 in
Width - Overall [x]	13.67 mm	1.5 - 39.6 mm

RF SHIELD, 1.559"X1.559"

Part	Ventilation	Height - Overall [z]	Height - Overall [z]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Width - Overall [x]	Width - Overall [x]	Type	Length - Overall	Width - Overall [x]	Height - Overall	Length - Overall [x]	Width - Overall
3G Shielding Specialties LP PIC-S-108	Non-Vented	7 mm	0.276 in	Surface Mount	1.559 in	39.6 mm	1.559 in	39.6 mm
3G Shielding Specialties LP PIC-S-202F		3.61 mm	0.142 "	Solder	0.65 "	16.51 mm	0.65 in	16.51 mm	Frame
3G Shielding Specialties LP PIC-S-105	Vent Holes in Pattern	6 mm	0.236 in	Solder	1 in			1.5 "		25.4 mm	38.1 mm
3G Shielding Specialties LP PIC-S-210C	Vent Holes in Pattern		0.118 in	Snap Fit		1.201 in			Cover			3 mm	30.5 mm
3G Shielding Specialties LP PIC-S-202C	Vent Holes in Pattern	3.61 mm	0.142 "	Snap Fit	0.65 "	16.51 mm	0.65 in	16.51 mm	Cover
3G Shielding Specialties LP PIC-S-204F		6 mm	0.236 in	Solder	1.26 in	32 mm	1.26 in	32 mm	Frame
3G Shielding Specialties LP PIC-S-110	Non-Vented		0.118 in	Surface Mount		1.201 in						3 mm	30.5 mm
3G Shielding Specialties LP PIC-S-205F		6 mm	0.236 in	Solder	1 in			1.5 "	Frame	25.4 mm	38.1 mm
3G Shielding Specialties LP PIC-S-103	Vent Holes in Pattern	5.08 mm	0.2 in	Solder	1.032 in		1.032 in			26.21 mm				26.21 mm
3G Shielding Specialties LP PIC-S-101	Vent Holes in Pattern	2.54 mm	0.1 in	Solder	0.5 in	12.7 mm	0.538 "	13.67 mm
