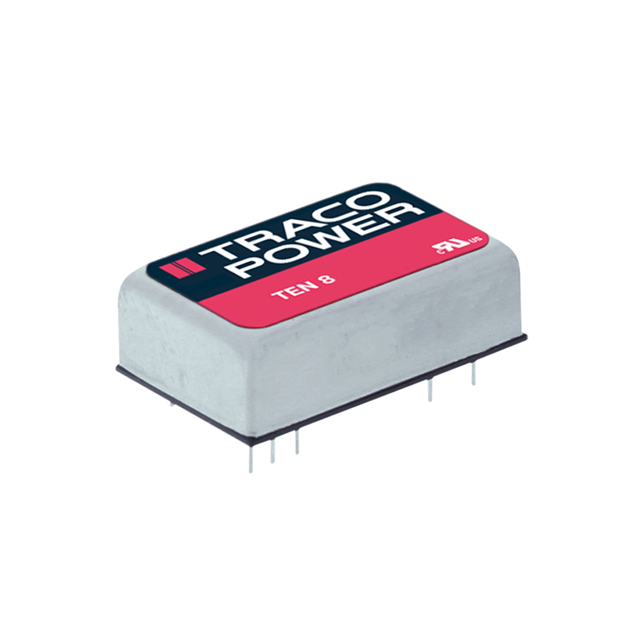

TEN 8-4810

Active

Traco Power

DC DC CONVERTER 3.3V 6.6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TEN 8 UL Cert

TEN 8-4810

Active

Traco Power

DC DC CONVERTER 3.3V 6.6W

Deep-Dive with AI

DocumentsDatasheet TEN 8 UL Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEN 8-4810

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2 A
Efficiency	80 %
Features	Remote On/Off, OCP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	9 PC Pad
Package / Case	24-DIP Module
Power (Watts)	6.6 W
Size / Dimension [x]	1.26 in
Size / Dimension [x]	32 mm
Size / Dimension [y]	20.3 mm
Size / Dimension [y]	0.8 in
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	3.3 V

TEN 8 Series

Part	Number of Outputs	Power (Watts)	Applications	Voltage - Isolation	Features	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Current - Output (Max) [Max]	Type	Voltage - Output 1	Efficiency	Voltage - Input (Max) [Max]
Traco Power TEN 8-4810	1	6.6 W	ITE (Commercial)	1.5 kV	OCP Remote On/Off SCP	Through Hole	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	36 V	85 °C	-40 °C	9 PC Pad	24-DIP Module	2 A	Isolated Module	3.3 V	80 %	75 V
Traco Power TEN 8-4811WI	1	8 W	ITE (Commercial) Railway	1.5 kV	OCP OVP Remote On/Off SCP UVLO	Through Hole	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	18 V	85 °C	-40 °C	9 PC Pad	24-DIP Module	1.6 A	Isolated Module	5 V	87 %	75 V
Traco Power TEN 8-4810WI	1	7.9 W	ITE (Commercial) Railway	1.5 kV	OCP OVP Remote On/Off SCP UVLO	Through Hole	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	18 V	85 °C	-40 °C	9 PC Pad	24-DIP Module	2.4 A	Isolated Module	3.3 V	85 %	75 V
Traco Power TEN 8-4813	1	8 W	ITE (Commercial)	1.5 kV	OCP Remote On/Off SCP	Through Hole	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	36 V	85 °C	-40 °C	9 PC Pad	24-DIP Module	535 mA	Isolated Module	15 V	86 %	75 V
Traco Power TEN 8-7210WI	1	7.9 W	ITE (Commercial) Railway	1.5 kV	OCP OVP Remote On/Off SCP UVLO	Through Hole	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	43 V	85 °C	-40 °C	9 PC Pad	24-DIP Module	2.4 A	Isolated Module	3.3 V	84 %	160 V
Traco Power TEN 8-4811	1	7.5 W	ITE (Commercial)	1.5 kV	OCP Remote On/Off SCP	Through Hole	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	36 V	85 °C	-40 °C	9 PC Pad	24-DIP Module	1.5 A	Isolated Module	5 V	83 %	75 V
Traco Power TEN 8-1213	1	8 W	ITE (Commercial)	1.5 kV	OCP Remote On/Off SCP	Through Hole	0.4 "	20.3 mm	1.26 in	10.2 mm	32 mm	0.8 in	9 V	85 °C	-40 °C	9 PC Pad	24-DIP Module	535 mA	Isolated Module	15 V	87 %	18 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 32.97
		10	$ 30.30
		25	$ 29.30
		50	$ 28.57
		100	$ 27.85
		250	$ 26.93
		500	$ 23.93
