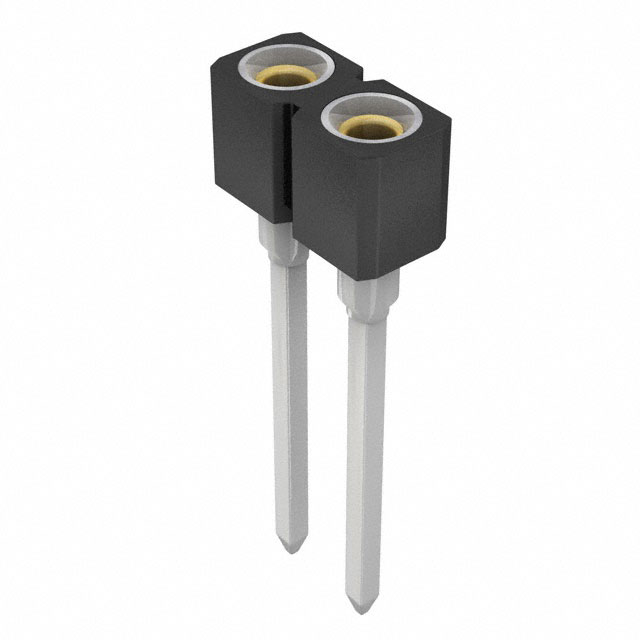

322-83-102-41-001101

Active

PRECI-DIP SA

CONN SOCKET 2POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

322-83-102-41-001101

Active

PRECI-DIP SA

CONN SOCKET 2POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	322-83-102-41-001101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post	0.37 in
Contact Length - Post	9.4 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.9 mm
Insulation Height	0.193 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Cable/Wire
Termination	Wire Wrap

322-83 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Finish - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Rows	Material Flammability Rating	Contact Type	Connector Type	Number of Positions	Contact Finish - Post	Contact Material	Insulation Height	Insulation Height	Number of Positions Loaded	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Shape	Style	Current Rating (Amps)
PRECI-DIP SA 322-83-151-41-001101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Through Hole	0.1 in	2.54 mm	Black	1	UL94 V-0	Female Socket	Socket	51	Tin	Beryllium Copper	4.9 mm	0.193 in	All	Push-Pull	0.37 in	9.4 mm	29.5 Áin	0.75 Ám	Wire Wrap	Circular	Board to Cable/Wire	3 A
PRECI-DIP SA 322-83-134-41-001101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Through Hole	0.1 in	2.54 mm	Black	1	UL94 V-0	Female Socket	Socket	34	Tin	Beryllium Copper	4.9 mm	0.193 in	All	Push-Pull	0.37 in	9.4 mm	29.5 Áin	0.75 Ám	Wire Wrap	Circular	Board to Cable/Wire	3 A
PRECI-DIP SA 322-83-135-41-001101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Through Hole	0.1 in	2.54 mm	Black	1	UL94 V-0	Female Socket	Socket	35	Tin	Beryllium Copper	4.9 mm	0.193 in	All	Push-Pull	0.37 in	9.4 mm	29.5 Áin	0.75 Ám	Wire Wrap	Circular	Board to Cable/Wire	3 A
PRECI-DIP SA 322-83-152-41-001101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Through Hole	0.1 in	2.54 mm	Black	1	UL94 V-0	Female Socket	Socket	52	Tin	Beryllium Copper	4.9 mm	0.193 in	All	Push-Pull	0.37 in	9.4 mm	29.5 Áin	0.75 Ám	Wire Wrap	Circular	Board to Cable/Wire	3 A
PRECI-DIP SA 322-83-102-41-001101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Through Hole	0.1 in	2.54 mm	Black	1	UL94 V-0	Female Socket	Socket	2	Tin	Beryllium Copper	4.9 mm	0.193 in	All	Push-Pull	0.37 in	9.4 mm	29.5 Áin	0.75 Ám	Wire Wrap	Circular	Board to Cable/Wire	3 A
PRECI-DIP SA 322-83-110-41-001101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Through Hole	0.1 in	2.54 mm	Black	1	UL94 V-0	Female Socket	Socket	10	Tin	Beryllium Copper	4.9 mm	0.193 in	All	Push-Pull	0.37 in	9.4 mm	29.5 Áin	0.75 Ám	Wire Wrap	Circular	Board to Cable/Wire	3 A
PRECI-DIP SA 322-83-130-41-001101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Through Hole	0.1 in	2.54 mm	Black	1	UL94 V-0	Female Socket	Socket	30	Tin	Beryllium Copper	4.9 mm	0.193 in	All	Push-Pull	0.37 in	9.4 mm	29.5 Áin	0.75 Ám	Wire Wrap	Circular	Board to Cable/Wire	3 A
PRECI-DIP SA 322-83-159-41-001101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Through Hole	0.1 in	2.54 mm	Black	1	UL94 V-0	Female Socket	Socket	59	Tin	Beryllium Copper	4.9 mm	0.193 in	All	Push-Pull	0.37 in	9.4 mm	29.5 Áin	0.75 Ám	Wire Wrap	Circular	Board to Cable/Wire	3 A
PRECI-DIP SA 322-83-137-41-001101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Through Hole	0.1 in	2.54 mm	Black	1	UL94 V-0	Female Socket	Socket	37	Tin	Beryllium Copper	4.9 mm	0.193 in	All	Push-Pull	0.37 in	9.4 mm	29.5 Áin	0.75 Ám	Wire Wrap	Circular	Board to Cable/Wire	3 A
PRECI-DIP SA 322-83-117-41-001101	-55 °C	125 °C	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Through Hole	0.1 in	2.54 mm	Black	1	UL94 V-0	Female Socket	Socket		Tin	Beryllium Copper	4.9 mm	0.193 in	All	Push-Pull	0.37 in	9.4 mm	29.5 Áin	0.75 Ám	Wire Wrap	Circular	Board to Cable/Wire	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2360	$ 0.28

Description

General part information

322-83 Series

2 Position Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
