XC74UL14AAMR

Obsolete

Torex Semiconductor Ltd

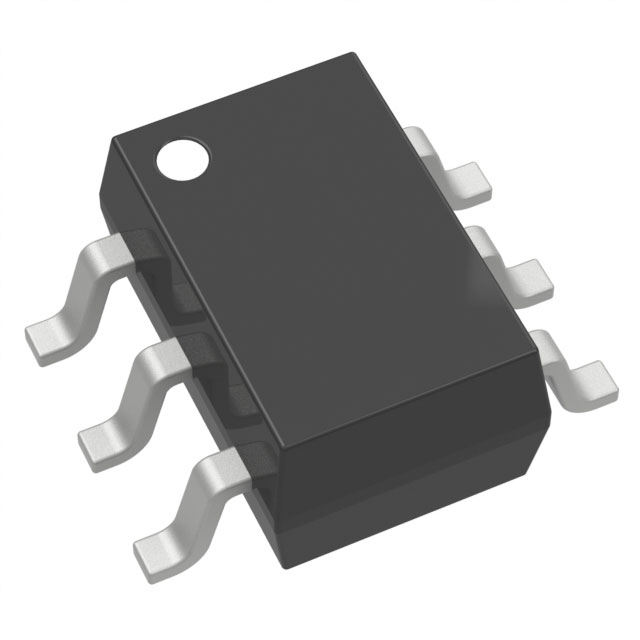

IC INVERT SCHMITT 1CH 1INP SOT26

Search across all available documentation for this part.

Obsolete

Torex Semiconductor Ltd

IC INVERT SCHMITT 1CH 1INP SOT26

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XC74UL14AAMR	74UL14 Series

Current - Output High, Low [custom]	8 mA	8 mA
Current - Output High, Low [custom]	8 mA	8 mA
Current - Quiescent (Max) [Max]	1 çA	1 çA
Features	Schmitt Trigger	Schmitt Trigger
Input Logic Level - Low [Max]	1.65 V	1.65 V
Input Logic Level - Low [Min]	0.9 V	0.9 V
Logic Type	Inverter	Inverter
Max Propagation Delay @ V, Max CL	10.6 ns	10.6 ns
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	1	1
Number of Inputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	SOT-23-6	SC-70-5, 5-TSSOP, SOT-353, SOT-23-6
Supplier Device Package	SOT-26	SSOT-25, SOT-26
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	2 V	2 V

IC INVERT SCHMITT 1CH 1IN SSOT25

Part	Current - Quiescent (Max) [Max]	Number of Circuits	Mounting Type	Supplier Device Package	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Features	Logic Type	Number of Inputs	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Max Propagation Delay @ V, Max CL
Torex Semiconductor Ltd XC74UL14AANR	1 çA	1	Surface Mount	SSOT-25	1.65 V	0.9 V	Schmitt Trigger	Inverter	1	5.5 V	2 V	8 mA	8 mA	5-TSSOP, SC-70-5, SOT-353	85 °C	-40 °C	10.6 ns
Torex Semiconductor Ltd XC74UL14AAMR	1 çA	1	Surface Mount	SOT-26	1.65 V	0.9 V	Schmitt Trigger	Inverter	1	5.5 V	2 V	8 mA	8 mA	SOT-23-6	85 °C	-40 °C	10.6 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Inverter IC 1 Channel Schmitt Trigger SOT-26
