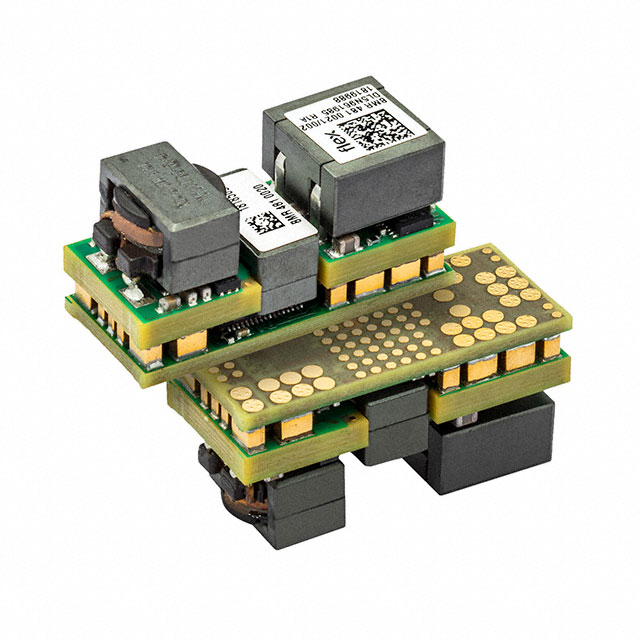

BMR4810021/002

Active

Flex Power Modules

DC DC CONVERTER 1V 70W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 1V 70W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMR4810021/002	BMR481 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	70 A	70 A
Efficiency	92 %	92 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-20 °C	-20 °C
Package / Case	20-SMD Module	103-BLGA Module, 20-SMD Module
Power (Watts)	70 W	70 W
Size / Dimension [x]	27.7 mm	27.7 mm
Size / Dimension [x]	1.09 "	1.09 "
Size / Dimension [y]	0.47 "	0.47 "
Size / Dimension [y]	12 mm	12 mm
Size / Dimension [z]	14 mm	12.6 - 14 mm
Size / Dimension [z]	0.55 in	0.5 - 0.55 in
Standard Number	62368-1	62368-1
Type	Isolated Module, Digital	Isolated Module, Digital
Voltage - Input (Max) [Max]	60 V	60 V
Voltage - Input (Min) [Min]	40 V	40 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	1 V	1 V

DC DC CONVERTER 1V 70W

Part	Voltage - Input (Max) [Max]	Voltage - Isolation	Standard Number	Package / Case	Power (Watts)	Features	Type	Current - Output (Max) [Max]	Control Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Number of Outputs	Mounting Type	Approval Agency	Applications	Voltage - Input (Min) [Min]
Flex Power Modules BMR4810022	60 V	1.5 kV	62368-1	103-BLGA Module	70 W	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	Isolated Module, Digital	70 A	Active Low, Enable	27.7 mm	0.47 "	12 mm	0.5 in	12.6 mm	1.09 "	1 V	125 °C	-20 °C	92 %	1	Surface Mount	CB, CSA, IEC, TUV, UL	ITE (Commercial)	40 V
Flex Power Modules BMR4810021/002	60 V	1.5 kV	62368-1	20-SMD Module	70 W	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	Isolated Module, Digital	70 A	Active Low, Enable	27.7 mm	0.47 "	12 mm	0.55 in	14 mm	1.09 "	1 V	125 °C	-20 °C	92 %	1	Surface Mount	CB, CSA, IEC, TUV, UL	ITE (Commercial)	40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module, Digital DC DC Converter 1 Output 1V 70A 40V - 60V Input
