EU0270500000G

Active

AMPHENOL ANYTEK

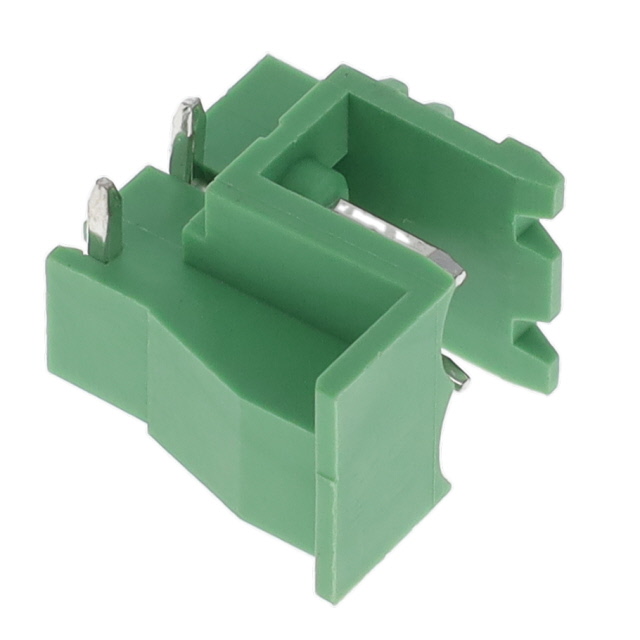

TERM BLOCK HDR 2POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

EU0270500000G

Active

AMPHENOL ANYTEK

TERM BLOCK HDR 2POS 90DEG 5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.54
		10	$ 0.34
		25	$ 0.29
		50	$ 0.26
		100	$ 0.25
		250	$ 0.22
		500	$ 0.21
		2000	$ 0.19

Description

General part information

EU Series

2 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EU0270500000G	EU Series

Color	Green	Green
Contact Material	Copper	Copper
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 - 3.6 mm
Contact Tail Length	0.138 in	0.138 - 0.142 in
Current - UL	20 A	10 - 20 A
Header Orientation	90°, Right Angle	90°, Right Angle
Housing Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	2	2 - 4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	3.5 - 5 mm
Pitch [x]	0.197 in	0.138 - 0.197 in
Positions Per Level	2	2 - 4
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (2 Side)	Header, Male Pins, Shrouded (2 Side)
Voltage - UL	300 V	300 V

EU Series

TERM BLOCK HDR 2POS 90DEG 5MM

Part	Contact Mating Finish	Termination Style	Color	Type	Positions Per Level	Number of Levels	Pitch [x]	Pitch [x]	Contact Material	Housing Material	Material Flammability Rating	Number of Positions	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Tail Length	Contact Tail Length	Mounting Type	Voltage - UL	Current - UL
AMPHENOL ANYTEK EU0270510000G	Tin	Solder	Green	Header, Male Pins, Shrouded (2 Side)	2	1	5 mm	0.197 in	Copper	Thermoplastic	UL94 V-0	2	90°, Right Angle	-40 °C	115 °C	3.5 mm	0.138 in	Through Hole	300 V	20 A
AMPHENOL ANYTEK EU0410810000G	Tin	Solder	Green	Header, Male Pins, Shrouded (2 Side)	4	1	3.5 mm	0.138 in	Copper	Thermoplastic	UL94 V-0	4	90°, Right Angle	-40 °C	115 °C	3.6 mm	0.142 in	Through Hole	300 V	10 A
AMPHENOL ANYTEK EU0370500000G	Tin	Solder	Green	Header, Male Pins, Shrouded (2 Side)	3	1	5 mm	0.197 in	Copper	Thermoplastic	UL94 V-0		90°, Right Angle	-40 °C	115 °C	3.5 mm	0.138 in	Through Hole	300 V	20 A
AMPHENOL ANYTEK EU0470810000G		Solder		Header, Male Pins, Shrouded (2 Side)	4	1						4	90°, Right Angle					Through Hole
AMPHENOL ANYTEK EU0410800000G	Tin	Solder	Green	Header, Male Pins, Shrouded (2 Side)	4	1	3.5 mm	0.138 in	Copper	Thermoplastic	UL94 V-0	4	90°, Right Angle	-40 °C	115 °C	3.6 mm	0.142 in	Through Hole	300 V	10 A
AMPHENOL ANYTEK EU0270500000G	Tin	Solder	Green	Header, Male Pins, Shrouded (2 Side)	2	1	5 mm	0.197 in	Copper	Thermoplastic	UL94 V-0	2	90°, Right Angle	-40 °C	115 °C	3.5 mm	0.138 in	Through Hole	300 V	20 A
AMPHENOL ANYTEK EU0310800000G	Tin	Solder	Green	Header, Male Pins, Shrouded (2 Side)	3	1	3.5 mm	0.138 in	Copper	Thermoplastic	UL94 V-0		90°, Right Angle	-40 °C	115 °C	3.6 mm	0.142 in	Through Hole	300 V	10 A
