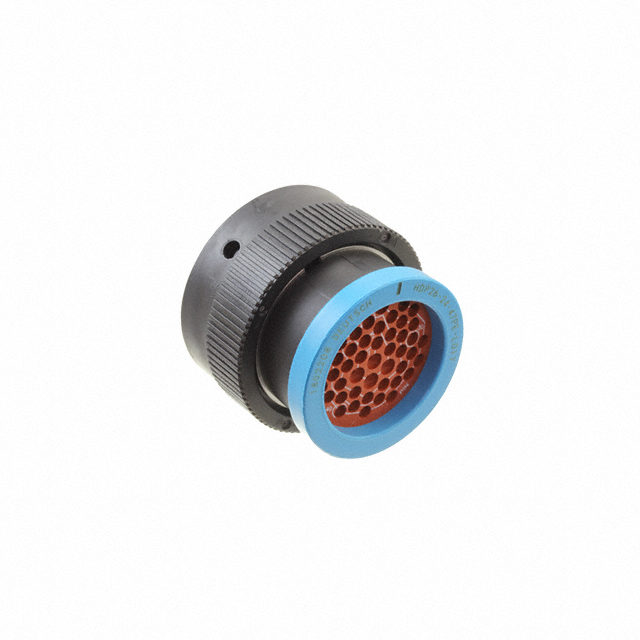

HDP26-24-47PE-L017

HDP26-24-47PE-L017

Active
TE Connectivity AMP Connectors

CONN PLUG HSNG MALE 47POS INLINE

Find alt

Description

General part information

DEUTSCH HDP Series

47 Position Housing, Housing for Male Terminals, Wire-to-Panel, Sealable, Black, Wire & Cable, Power, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid

Technical Specifications

Parameters and characteristics for this part

SpecificationHDP26-24-47PE-L017
Connector TypePlug Housing
Contact ShapeCircular
Contact Size20, 16
Contact TypeCrimp
Fastening TypeBayonet Lock
FeaturesCoupling Nut, Ring Adapter
Housing ColorBlue, Black
Ingress Protection DescriptionDust Tight, Waterproof
Ingress Protection IP RatingIP68
Insert MaterialPolyetherimide, PEI
Material Flammability RatingUL94 V-1
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions47
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
OrientationKeyed
Shell MaterialGlass Filled, Nylon 6/6, Polyamide (PA66)
Shell Size - Insert (Maximum)47
Shell Size - Insert (Minimum)24
ShieldingUnshielded
TypeFor Male Pins
