Specification	1776313-4

Barrier Type	Enclosed
Bottom Termination	Closed
Color	Natural
Current Rating	65 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Chassis, Panel
Number of Circuits	4
Number of Rows	2
Number of Wire Entries	8
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-35 °C
Pitch	0.571 in
Terminal Block Type	Eurostyle Terminal Strip
Terminal Screw Finish	Non-Hexavalent Chromate, Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge (AWG) (Max)	14 AWG
Wire Gauge (AWG) (Min)	6 AWG

1776313 Series

Part	Bottom Termination	Current Rating	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Voltage Rating	Color	Number of Circuits	Top Termination	Terminal Block Type	Barrier Type	Number of Rows	Pitch	Number of Wire Entries	Terminal Screw Material	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Material - Insulation	Mounting Type	Terminal Screw Finish

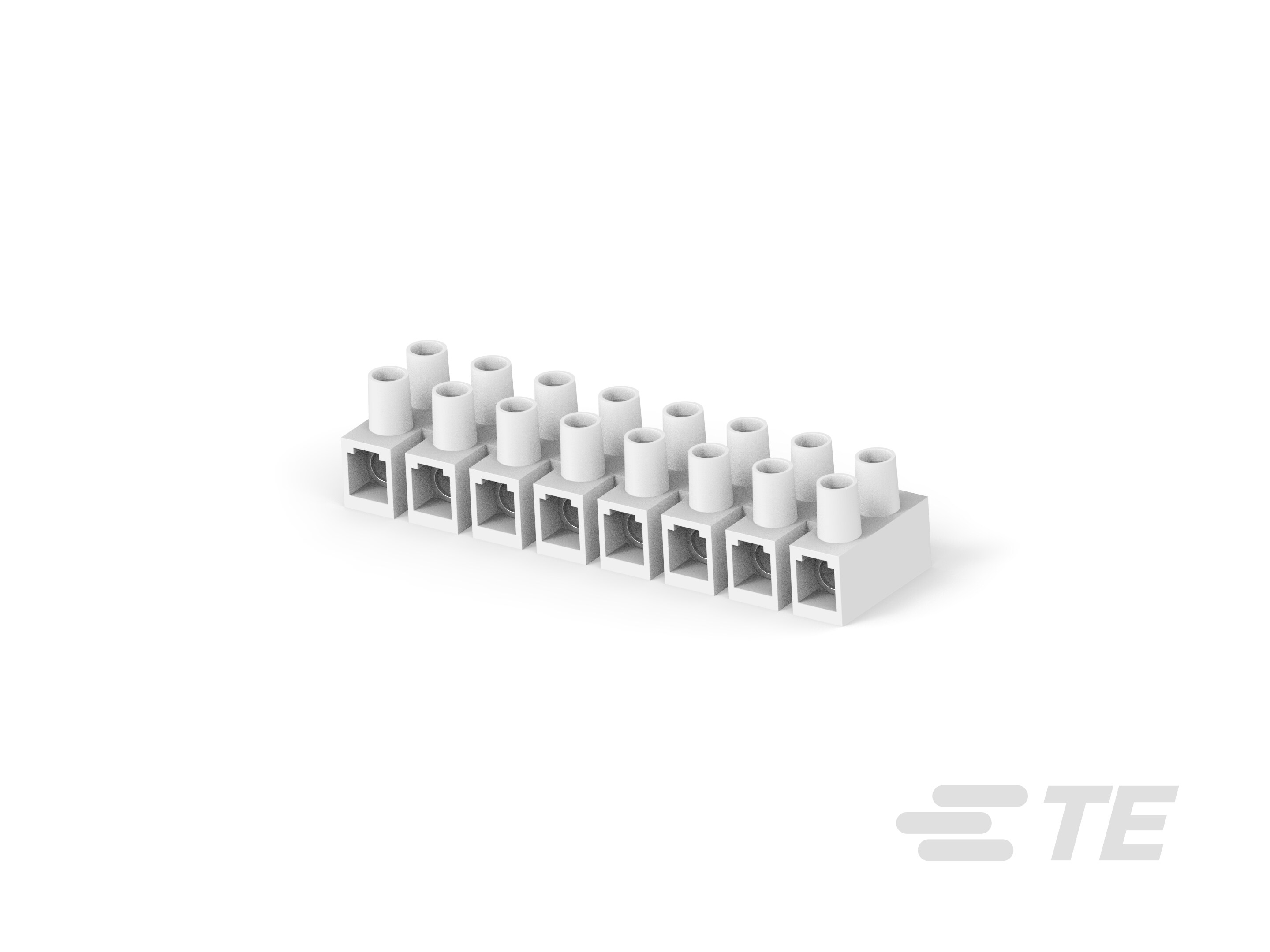

TE Connectivity AMP Connectors 1776313-8	Closed	65 A	14 AWG	6 AWG	600 V	Natural	8	Screws	Eurostyle Terminal Strip	Enclosed	2	0.571 in	16	Steel	100 °C	-35 °C	UL94 V-2	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc
TE Connectivity AMP Connectors 1776313-4	Closed	65 A	14 AWG	6 AWG	600 V	Natural	4	Screws	Eurostyle Terminal Strip	Enclosed	2	0.571 in	8	Steel	100 °C	-35 °C	UL94 V-2	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc
TE Connectivity AMP Connectors 1776313-1	Closed	65 A	14 AWG	6 AWG	600 V	Natural	1	Screws	Eurostyle Terminal Strip	Enclosed	2		2	Steel	100 °C	-35 °C	UL94 V-2	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc
TE Connectivity AMP Connectors 1776313-5	Closed	65 A	14 AWG	6 AWG	600 V	Natural	5	Screws	Eurostyle Terminal Strip	Enclosed	2	0.571 in	10	Steel	100 °C	-35 °C	UL94 V-2	Nylon 6/6 PA66 Polyamide	Chassis Panel	Non-Hexavalent Chromate Zinc
