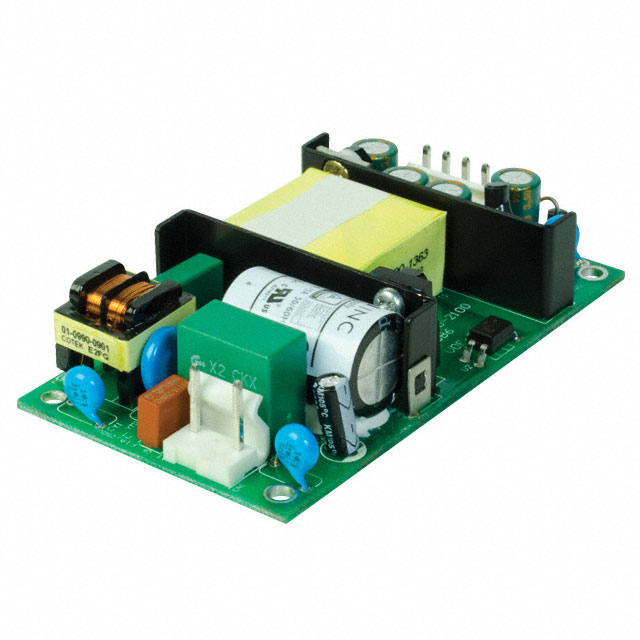

VOF-30-5

Obsolete

AC/DC CONVERTER 5V 30W

Obsolete

AC/DC CONVERTER 5V 30W

Description

General part information

Open Frame AC DC Converters 1 Output 5V 90 ~ 277 VAC Input

Parameters and characteristics for this part

Specification	VOF-30-5

Applications	ITE (Commercial)
Approval Agency	EN, IEC, SIQ, UL, FCC, TUV, CB Scheme
Current - Output 1	5.3 A
Efficiency	78 %
Features	DC Input Capable, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	30 W
Size / Dimension Height	0.83 in
Size / Dimension Length	3.54 in
Size / Dimension Width	2 in
Standard Number	61000-3-3, 60950-1, 61000-6-1, 55024, 61000-3-2, 61204-3, 61000-6-3
Type	Open Frame
Voltage - Input (AC) Maximum	277 VAC
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	3 kV
Voltage - Output 1	5 V

Part	Efficiency	Voltage - Isolation	Voltage - Output 1	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Standard Number	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Power (Watts)	Type	Features	Mounting Type	Number of Outputs	Approval Agency	Current - Output 1
CUI Inc. VOF-30-5	78 %	3 kV	5 V	60 °C	-20 °C	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	90 V	277 VAC	0.83 in	3.54 in	2 in	30 W	Open Frame	Adjustable Output DC Input Capable Universal Input	Chassis Mount	1	CB Scheme EN FCC IEC SIQ TUV UL	5.3 A
CUI Inc. VOF-30-24	86 %	3 kV	24 V	60 °C	-20 °C	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	90 V	277 VAC	0.83 in	3.54 in	2 in	30 W	Open Frame	Adjustable Output DC Input Capable Universal Input	Chassis Mount	1	CB Scheme EN FCC IEC SIQ TUV UL	1.3 A
CUI Inc. VOF-30-15	85 %	3 kV	15 V	60 °C	-20 °C	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	90 V	277 VAC	0.83 in	3.54 in	2 in	30 W	Open Frame	Adjustable Output DC Input Capable Universal Input	Chassis Mount	1	CB Scheme EN FCC IEC SIQ TUV UL	2 A
CUI Inc. VOF-30-12	84 %	3 kV	12 V	60 °C	-20 °C	ITE (Commercial)	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3	90 V	277 VAC	0.83 in	3.54 in	2 in	30 W	Open Frame	Adjustable Output DC Input Capable Universal Input	Chassis Mount	1	CB Scheme EN FCC IEC SIQ TUV UL	2.5 A
