964284-2
ActiveTE Connectivity AMP Connectors

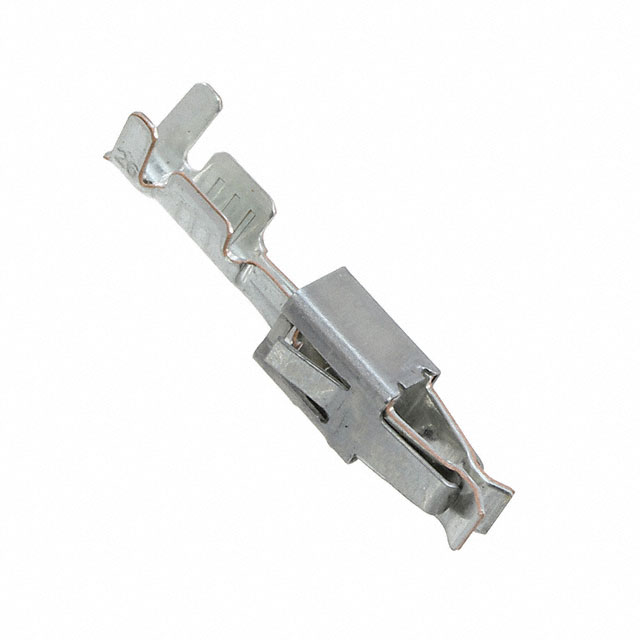

CONN SOCKET 17-20AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
964284-2
ActiveTE Connectivity AMP Connectors
CONN SOCKET 17-20AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 964284-2 | 964284 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Silver |
| Contact Finish Thickness | - | 3 µm |
| Contact Finish Thickness | - | 118.1 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Power | Power, Stamped |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 17 AWG | 17 - 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
| 10 | $ 0.15 | |||
| 25 | $ 0.14 | |||
| 50 | $ 0.14 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 4000 | $ 0.09 | ||
| 8000 | $ 0.08 | |||
| 12000 | $ 0.08 | |||
964284 Series
CONN SOCKET 17-20AWG CRIMP TIN
Description
General part information
964284 Series
Socket Contact Tin 17-20 AWG Crimp Power
Documents
Technical documentation and resources
No documents available
