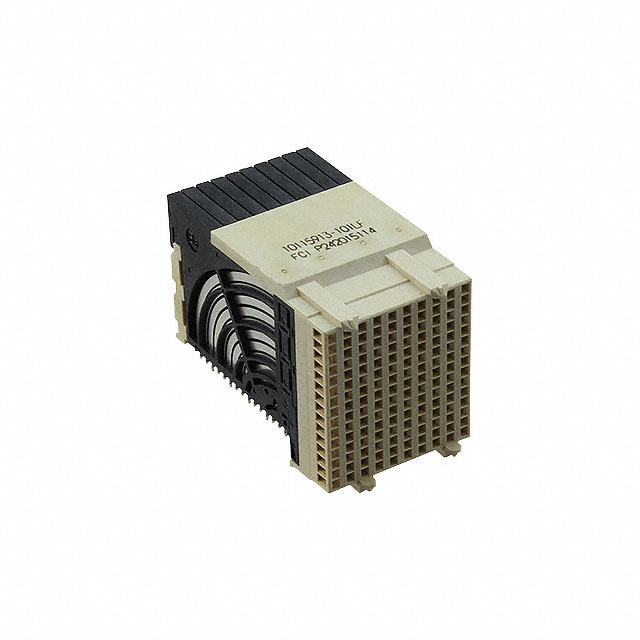

10115913-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HI SPEED 150P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HI SPEED 150P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10115913-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	10
Number of Positions	150
Number of Positions Loaded	All
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit
Voltage Rating	50 VAC

Part	Connector Type	Number of Positions Loaded	Connector Style	Color	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Termination	Number of Positions	Current Rating (Amps)	Number of Columns	Material Flammability Rating	Voltage Rating	Connector Usage	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol ICC (FCI) 10115913-101LF	Receptacle Female Sockets	All	High Speed	Natural	Gold	Board Edge Right Angle Through Hole	0.055 in	1.4 mm	Press-Fit	150	500 mA	10	UL94 V-0	50 VAC	Daughtercard	85 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural High Speed
