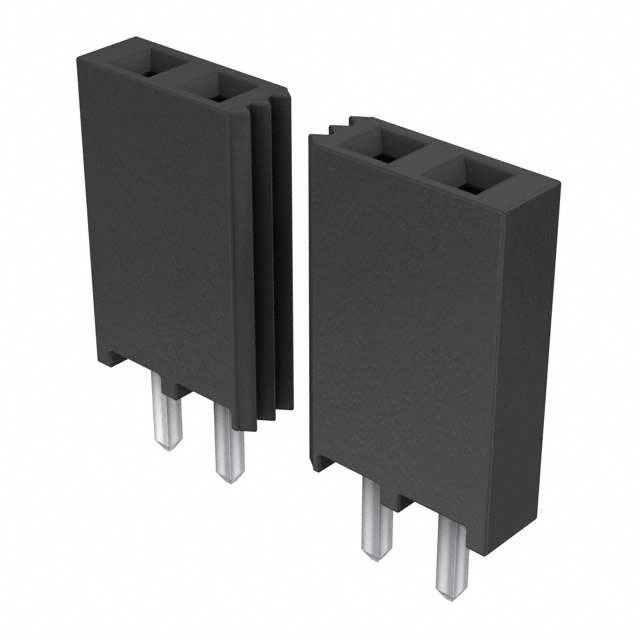

SSQ-146-01-T-S

Active

Samtec Inc.

CONN RCPT 46POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SSQ Through Hole Footprint

SSQ-146-01-T-S

Active

Samtec Inc.

CONN RCPT 46POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet SSQ Through Hole Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSQ-146-01-T-S

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.104 in
Contact Length - Post	2.64 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	46
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	465 VAC, 655 VDC

SSQ-146 Series

Part	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Insulation Material	Termination	Contact Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish - Post	Voltage Rating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Material	Style	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SSQ-146-01-G-D	Black	3 µin	0.076 µm	Square	UL94 V-0	2	All	Liquid Crystal Polymer (LCP)	Solder	Forked	Push-Pull	2.54 mm	0.1 in	92	Gold	465 VAC 655 VDC	Gold	-55 °C	125 °C	Through Hole	0.51 µm	20 µin	0.1 in	2.54 mm	Phosphor Bronze	Board to Board Cable	0.335 "	8.51 mm	0.104 in	2.64 mm	Receptacle
Samtec Inc. SSQ-146-02-T-D	Black			Square	UL94 V-0	2	All	Liquid Crystal Polymer (LCP)	Solder	Forked	Push-Pull	2.54 mm	0.1 in	92	Tin	465 VAC 655 VDC		-55 °C	105 ░C	Through Hole			0.1 in	2.54 mm	Phosphor Bronze	Board to Board Cable	0.335 "	8.51 mm	0.194 in	4.93 mm	Receptacle
Samtec Inc. SSQ-146-03-S-D	Black			Square	UL94 V-0	2	All	Liquid Crystal Polymer (LCP)	Solder	Forked	Push-Pull	2.54 mm	0.1 in	92	Tin	465 VAC 655 VDC	Gold	-55 °C	125 °C	Through Hole	0.76 Ám	30 Áin	0.1 in	2.54 mm	Phosphor Bronze	Board to Board Cable	0.335 "	8.51 mm	0.394 in	10 mm	Receptacle
Samtec Inc. SSQ-146-01-G-T	Black	3 µin	0.076 µm	Square	UL94 V-0	3	All	Liquid Crystal Polymer (LCP)	Solder	Forked	Push-Pull	2.54 mm	0.1 in	138	Gold	465 VAC 655 VDC	Gold	-55 °C	125 °C	Through Hole	0.51 µm	20 µin	0.1 in	2.54 mm	Phosphor Bronze	Board to Board Cable	0.335 "	8.51 mm	0.104 in	2.64 mm	Receptacle
Samtec Inc. SSQ-146-02-S-D-RA	Black			Square	UL94 V-0	2	All	Liquid Crystal Polymer (LCP)	Solder	Forked	Push-Pull	2.54 mm	0.1 in	92	Tin	465 VAC 655 VDC	Gold	-55 °C	125 °C	Through Hole Right Angle	0.76 Ám	30 Áin	0.1 in	2.54 mm	Phosphor Bronze	Board to Board Cable	0.195 in	4.95 mm	0.1 in	2.54 mm	Receptacle
Samtec Inc. SSQ-146-03-G-D	Black	3 µin	0.076 µm	Square	UL94 V-0	2	All	Liquid Crystal Polymer (LCP)	Solder	Forked	Push-Pull	2.54 mm	0.1 in	92	Gold	465 VAC 655 VDC	Gold	-55 °C	125 °C	Through Hole	0.51 µm	20 µin	0.1 in	2.54 mm	Phosphor Bronze	Board to Board Cable	0.335 "	8.51 mm	0.394 in	10 mm	Receptacle
Samtec Inc. SSQ-146-01-T-S	Black			Square	UL94 V-0	1	All	Liquid Crystal Polymer (LCP)	Solder	Forked	Push-Pull			46	Tin	465 VAC 655 VDC		-55 °C	105 ░C	Through Hole			0.1 in	2.54 mm	Phosphor Bronze	Board to Board Cable	0.335 "	8.51 mm	0.104 in	2.64 mm	Receptacle
Samtec Inc. SSQ-146-04-G-D	Black	3 µin	0.076 µm	Square	UL94 V-0	2	All	Liquid Crystal Polymer (LCP)	Solder	Forked	Push-Pull	2.54 mm	0.1 in	92	Gold	465 VAC 655 VDC	Gold	-55 °C	125 °C	Through Hole	0.51 µm	20 µin	0.1 in	2.54 mm	Phosphor Bronze	Board to Board Cable	0.335 "	8.51 mm			Receptacle	0.584 "	14.83 mm
Samtec Inc. SSQ-146-02-S-D	Black			Square	UL94 V-0	2	All	Liquid Crystal Polymer (LCP)	Solder	Forked	Push-Pull	2.54 mm	0.1 in	92	Tin	465 VAC 655 VDC	Gold	-55 °C	125 °C	Through Hole	0.76 Ám	30 Áin	0.1 in	2.54 mm	Phosphor Bronze	Board to Board Cable	0.335 "	8.51 mm	0.194 in	4.93 mm	Receptacle
Samtec Inc. SSQ-146-03-S-S-RA	Black			Square	UL94 V-0	1	All	Liquid Crystal Polymer (LCP)	Solder	Forked	Push-Pull			46	Tin	465 VAC 655 VDC	Gold	-55 °C	125 °C	Through Hole Right Angle	0.76 Ám	30 Áin	0.1 in	2.54 mm	Phosphor Bronze	Board to Board Cable					Receptacle	0.3 "	7.62 mm	0.095 in	2.41 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.79
		10	$ 5.24
		100	$ 4.58
		500	$ 3.86
		1000	$ 3.38

Description

General part information

SSQ-146 Series

46 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
