1-1394416-1

Active

TE Connectivity AMP Connectors

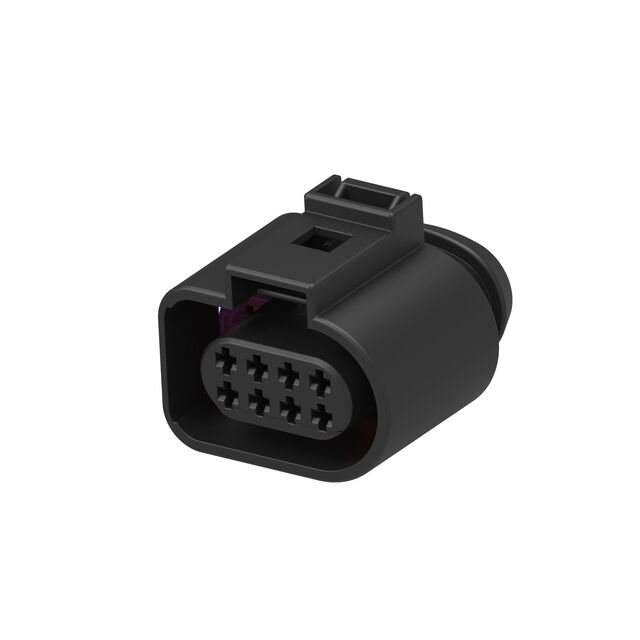

CONN RCPT HSG 8POS 4.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 8POS 4.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1394416-1	1394416 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Holder	Latch Holder
Features	Sealed	Sealed
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	8	8
Number of Rows	2	2
Pitch [x]	4 mm	4 mm
Pitch [x]	0.157 in	0.157 in
Row Spacing	0.157 in	0.157 in
Row Spacing	4 mm	4 mm

CONN RCPT HSG 8POS 4.00MM

Part	Mounting Type	Features	Number of Positions	Contact Type	Fastening Type	Color	Number of Rows	Note	Contact Termination	Insulation Material	Connector Type	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 1-1394416-1	Free Hanging (In-Line)	Sealed	8	Female Socket	Latch Holder	Black	2	Contacts Not Included	Crimp	Polybutylene Terephthalate (PBT)	Receptacle	0.157 in	4 mm	4 mm	0.157 in
TE Connectivity AMP Connectors 1394416-1	Free Hanging (In-Line)	Sealed	8	Female Socket	Latch Holder	Black	2	Contacts Not Included	Crimp		Receptacle	0.157 in	4 mm	4 mm	0.157 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Receptacle Black 0.157" (4.00mm)
