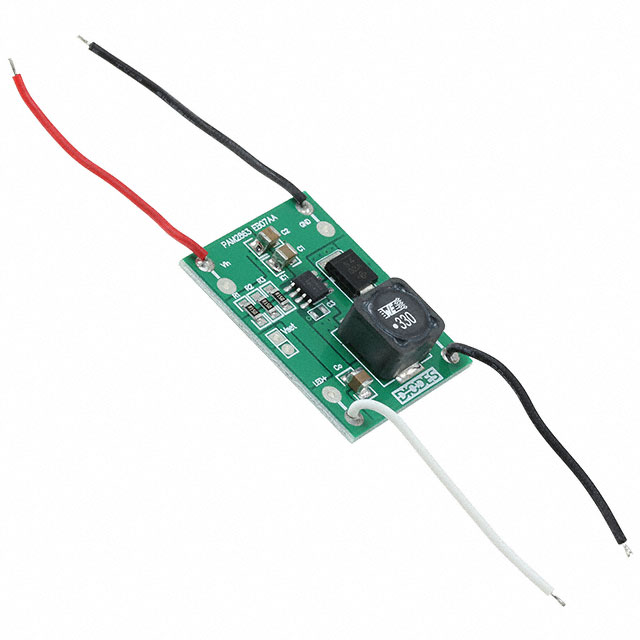

PAM2863EV1

Active

Diodes Inc

EVAL BOARD FOR PAM2863

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD FOR PAM2863

Technical Specifications

Parameters and characteristics for this part

Specification	PAM2863EV1

Current - Output / Channel [custom]	2 A
Outputs and Type	1 Non-Isolated Output
Supplied Contents	Board(s)
Utilized IC / Part	PAM2863
Voltage - Input [Max]	40 V
Voltage - Input [Min]	4.5 V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output / Channel [custom]	Utilized IC / Part	Supplied Contents	Outputs and Type
Diodes Inc PAM2863EV1	4.5 V	40 V	2 A	PAM2863	Board(s)	1 Non-Isolated Output

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.82

General part information

PAM2863 - 1 Non-Isolated Output LED Driver Evaluation Board

Technical documentation and resources

No documents available
