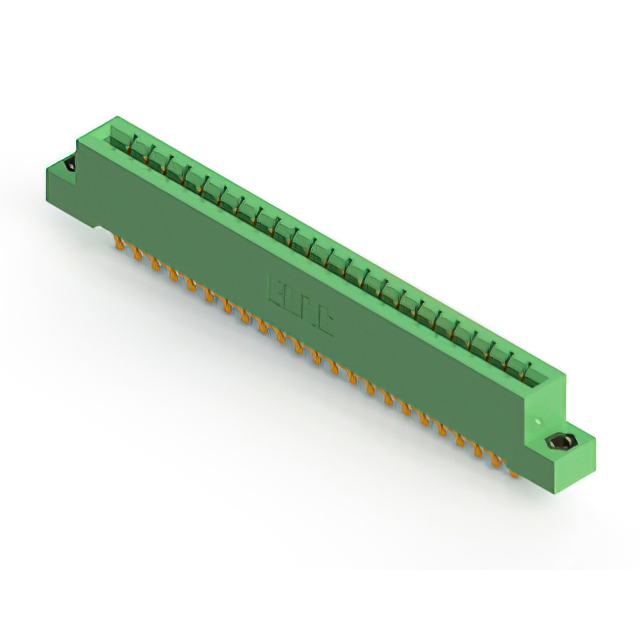

333-046-560-207
ActiveEDAC Inc.
3.96MM CLAMP BOARD 46P -40℃~+105℃ P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
333-046-560-207
ActiveEDAC Inc.
3.96MM CLAMP BOARD 46P -40℃~+105℃ P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-046-560-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 46 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
333-046 Series
...
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Number of Positions | Termination | Mounting Type | Contact Material | Color | Pitch [x] | Pitch [x] | Gender | Material - Insulation | Features | Number of Positions/Bay/Row [custom] | Number of Rows | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Dual | Cantilever | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 2 | 46 | Solder | Board Edge Straddle Mount | Copper Alloy | Green | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Card Extender | 23 | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Dual | Cantilever | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2 | 46 | Solder | Through Hole | Copper Alloy | Green | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | 23 | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Dual | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 2 | 46 | Solder | Board Edge Straddle Mount | Copper Alloy | Green | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Card Extender | 23 | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Dual | Cantilever | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2 | 46 | Solder | Through Hole | Copper Alloy | Green | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | 23 | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Dual | Cantilever | 4-40 Threaded Insert Top Mount Opening | 2 | 46 | Solder | Board Edge Straddle Mount | Copper Alloy | Green | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | Card Extender | 23 | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Dual | Cantilever | 2 | 46 | Solder Eyelet(s) | Through Hole | Copper Alloy | Green | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | 23 | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Dual | Cantilever | 2 | 46 | Wire Wrap | Through Hole Right Angle | Copper Alloy | Green | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | 23 | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Dual | Cantilever | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 2 | 46 | Solder | Through Hole | Copper Alloy | Green | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | 23 | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Dual | Cantilever | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 2 | 46 | Solder Eyelet(s) | Through Hole | Copper Alloy | Green | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | 23 | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Dual | Cantilever | 2 | 46 | Wire Wrap | Through Hole Right Angle | Copper Alloy | Green | 0.156 in | 3.96 mm | Female | Polyester Thermoplastic | 23 | 2 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
333-046 Series
46 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
