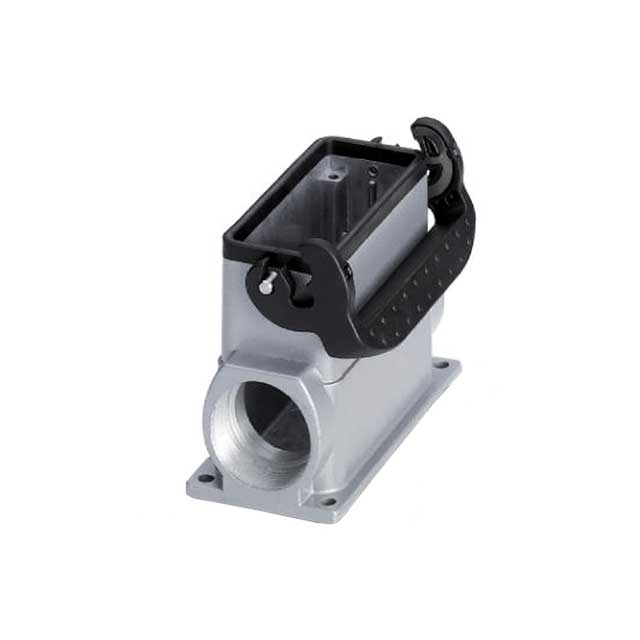

HEAVY DUTY POWER CONNECTORS HC-B 16-SML-67/ O1PG21

Search across all available documentation for this part.

Active

Phoenix Contact

HEAVY DUTY POWER CONNECTORS HC-B 16-SML-67/ O1PG21

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heavy Duty Power Connectors HC-B 16-SML-67/ O1PG21

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1673698	HC-SML Series

Connector Type	Base - Box Mount	Base - Box Mount
Housing Color	Gray	Gray
Housing Finish	Powder Coated	Powder Coated
Housing Material	Die Cast, Aluminum	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	B16	B48, B16
Size / Dimension [x]	4.606 "	4.606 - 5.945 in
Size / Dimension [x]	117 mm	117 - 151 mm
Size / Dimension [y]	57 mm	57 - 120 mm
Size / Dimension [y]	2.244 "	2.244 - 4.724 in
Size / Dimension [z]	67 mm	67 - 100 mm
Size / Dimension [z]	2.638 "	2.638 - 3.937 "
Style	Side Entry	Side Entry
Thread Size	PG21	PG29, PG21

Heavy Duty Power Connectors HC-B 16-SML-67/ O1PG21

Part	Housing Finish	Style	Thread Size	Lock Location	Housing Material	Size	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
Phoenix Contact 1772191	Powder Coated	Side Entry	PG29	Locking Clip (1) on Base Bottom	Aluminum, Die Cast	B48	Base - Box Mount	125 °C	-40 °C	IP65 - Dust Tight, Water Resistant	Gray	151 mm	120 mm	100 mm	4.724 in	3.937 "	5.945 in
Phoenix Contact 1673698	Powder Coated	Side Entry	PG21	Locking Clip (1) on Base Bottom	Aluminum, Die Cast	B16	Base - Box Mount	125 °C	-40 °C	IP65 - Dust Tight, Water Resistant	Gray	117 mm	57 mm	67 mm	2.244 "	2.638 "	4.606 "
