8124/06 100

Active

3M (TC)

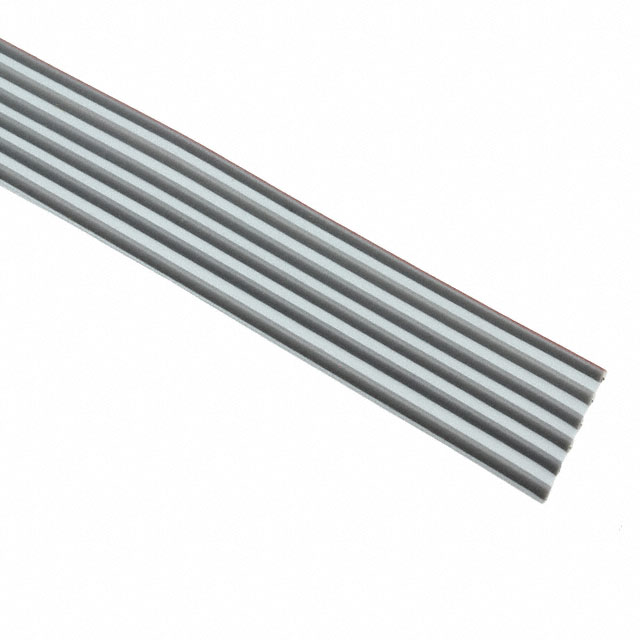

CBL RIBN 6COND FLAT 0.1 GRAY 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8124/06 100

Active

3M (TC)

CBL RIBN 6COND FLAT 0.1 GRAY 50'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8124/06 100

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	7
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	25 ft, 1 ft, 50 ft
Length	7.62 m, 304.8 mm, 15.24 m
Length [x]	3.05 m
Length [x]	10 ft
Number of Conductors	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Ratings	UL E42769
Ribbon Thickness	1.52 mm
Ribbon Thickness	0.06 "
Ribbon Width	14.43 mm
Ribbon Width	0.568 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	22 AWG

8124 Series

Part	Jacket (Insulation) Material	First Conductor Mark	Number of Conductors	Voltage	Conductor Material	Insulation Resistance	Shielding	Pitch [x]	Pitch [x]	Wire Gauge	Jacket Color	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Ribbon Width	Ribbon Width	Features	Ratings	Ribbon Thickness	Ribbon Thickness	Length	Length	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]
3M (TC) 8124/25 100	Poly-Vinyl Chloride (PVC)	Red	25	300 V	Copper Tinned	10 GOhm	Unshielded	2.54 mm	0.1 in	22 AWG	Gray	Flat Cable	-20 C	105 ░C	30 AWG	7	100 ft	30.48 m	62.69 mm	2.468 in	Zippable	UL E42769	1.52 mm	0.06 "
3M (TC) 8124/35	Poly-Vinyl Chloride (PVC)	Red	35	300 V	Copper Tinned	10 GOhm	Unshielded	2.54 mm	0.1 in	22 AWG	Gray	Flat Cable	-20 C	105 ░C	30 AWG	7	100 ft	30.48 m	88.09 mm	3.468 "	Zippable	UL E42769	1.52 mm	0.06 "
3M (TC) 8124/06 100	Poly-Vinyl Chloride (PVC)	Red	6	300 V	Copper Tinned	10 GOhm	Unshielded	2.54 mm	0.1 in	22 AWG	Gray	Flat Cable	-20 C	105 ░C	30 AWG	7	10 ft	3.05 m	14.43 mm	0.568 in	Zippable	UL E42769	1.52 mm	0.06 "	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm
3M (TC) 8124/24 100	Poly-Vinyl Chloride (PVC)	Red	24	300 V	Copper Tinned	10 GOhm	Unshielded	2.54 mm	0.1 in	22 AWG	Gray	Flat Cable	-20 C	105 ░C	30 AWG	7	100 ft	30.48 m			Zippable	UL E42769	1.52 mm	0.06 "			2.368 "	60.15 mm
3M (TC) 8124/14 100	Poly-Vinyl Chloride (PVC)	Red	14	300 V	Copper Tinned	10 GOhm	Unshielded	2.54 mm	0.1 in	22 AWG	Gray	Flat Cable	-20 C	105 ░C	30 AWG	7	100 ft	30.48 m	34.75 mm	1.368 in	Zippable	UL E42769	1.52 mm	0.06 "
3M (TC) 8124/18	Poly-Vinyl Chloride (PVC)	Red	18	300 V	Copper Tinned	10 GOhm	Unshielded	2.54 mm	0.1 in	22 AWG	Gray	Flat Cable	-20 C	105 ░C	30 AWG	7	100 ft	30.48 m			Zippable	UL E42769	1.52 mm	0.06 "			1.768 in	44.91 mm
3M (TC) 8124/13 100	Poly-Vinyl Chloride (PVC)	Red	13	300 V	Copper Tinned	10 GOhm	Unshielded	2.54 mm	0.1 in	22 AWG	Gray	Flat Cable	-20 C	105 ░C	30 AWG	7	100 ft	30.48 m			Zippable	UL E42769	1.52 mm	0.06 "					32.21 mm	1.268 in
3M (TC) 8124/33	Poly-Vinyl Chloride (PVC)	Red	33	300 V	Copper Tinned	10 GOhm	Unshielded	2.54 mm	0.1 in	22 AWG	Gray	Flat Cable	-20 C	105 ░C	30 AWG	7			83.01 mm	3.268 "			1.52 mm	0.06 "
3M (TC) 8124/28	Poly-Vinyl Chloride (PVC)	Red	28	300 V	Copper Tinned	10 GOhm	Unshielded	2.54 mm	0.1 in	22 AWG	Gray	Flat Cable	-20 C	105 ░C	30 AWG	7	100 ft	30.48 m	70.31 mm	2.768 in	Zippable	UL E42769	1.52 mm	0.06 "
3M (TC) 8124/26 100	Poly-Vinyl Chloride (PVC)	Red	26	300 V	Copper Tinned	10 GOhm	Unshielded	2.54 mm	0.1 in	22 AWG	Gray	Flat Cable	-20 C	105 ░C	30 AWG	7	100 ft	30.48 m	65.23 mm	2.568 in	Zippable	UL E42769	1.52 mm	0.06 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 97.26
		1	$ 52.48
		1	$ 22.14
		1	$ 3.21
		2	$ 88.16
		3	$ 83.22
		5	$ 41.74
		5	$ 2.55
		5	$ 17.62
		5	$ 77.39
		7	$ 73.78
		10	$ 2.32
		10	$ 37.87
		10	$ 16.00
		10	$ 70.14
		25	$ 33.29
		25	$ 14.03
		25	$ 61.62
		25	$ 2.04
		50	$ 1.85
		50	$ 55.92
		50	$ 12.76
		50	$ 30.12
		100	$ 1.67
		100	$ 27.30
		100	$ 11.56
		100	$ 50.80

Description

General part information

8124 Series

Flat Ribbon Cable Gray 6 Conductors 0.100" (2.54mm) Flat Cable 50.0' (15.24m)
