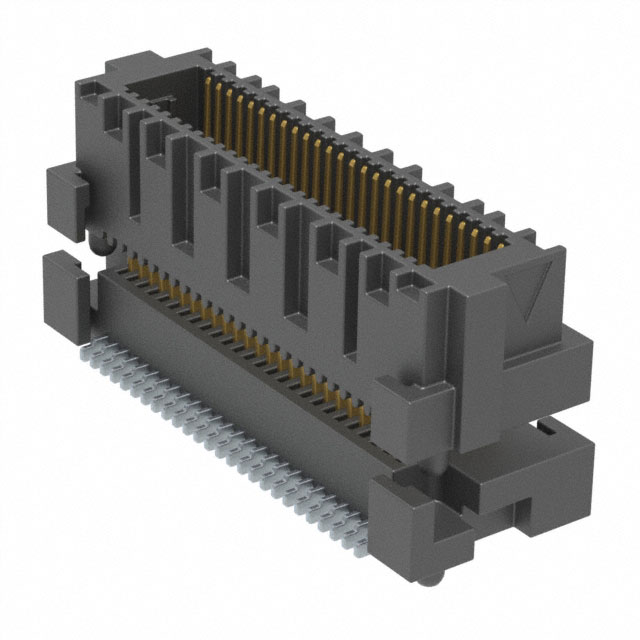

QMS-026-09.75-S-D-A-K-TR

Active

Samtec Inc.

CONN HDR 52POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

QMS-026-09.75-S-D-A-K-TR

Active

Samtec Inc.

CONN HDR 52POS SMD GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QMS-026-09.75-S-D-A-K-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board	9.35 mm
Height Above Board	0.368 in
Mated Stacking Heights	14 mm, 16 mm
Mounting Type	Surface Mount
Number of Positions	52
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QMS-026 Series

Isolated DC/DC Converters - Through Hole

Part	Contact Finish	Features	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mated Stacking Heights	Number of Positions	Connector Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. QMS-026-06.75-L-D-PC4	Gold	Board Guide Ground Bus (Plane) Power Pins (8)	Surface Mount Through Hole	10 Áin	0.25 Ám	2	11 mm 13 mm	52	Header Outer Shroud Contacts	0.265 in	6.73 mm	0.64 mm	0.025 in
Samtec Inc. QMS-026-06.75-L-D-A-GP	Gold	Board Guide Ground Bus (Plane) Mating Guide	Surface Mount	10 Áin	0.25 Ám	2	11 mm 13 mm	52	Header Outer Shroud Contacts	0.25 in	6.35 mm	0.64 mm	0.025 in
Samtec Inc. QMS-026-01-S-D-EM2	Gold	Ground Bus (Plane) Mating Guide	Board Edge Straddle Mount	30 Áin	0.76 Ám	2		52	Header Outer Shroud Contacts			0.64 mm	0.025 in
Samtec Inc. QMS-026-01-SL-D-RA-K-TR	Gold	Ground Bus (Plane) Pick and Place	Surface Mount Right Angle Through Hole	10 Áin	0.25 Ám	2		52	Header Outer Shroud Contacts			0.64 mm	0.025 in	8.12 mm	0.32 in
Samtec Inc. QMS-026-05.75-H-D-A-RT1	Gold	Board Guide Ground Bus (Plane) Mounting Flange	Surface Mount	10 Áin	0.25 Ám	2	10 mm 12 mm	52	Header Outer Shroud Contacts	0.227 in	5.76 mm	0.64 mm	0.025 in
Samtec Inc. QMS-026-06.75-L-D-PT8	Gold	Board Guide Ground Bus (Plane) Power Pins (16)	Surface Mount Through Hole	10 Áin	0.25 Ám	2	11 mm 13 mm		Header Outer Shroud Contacts	0.25 in	6.35 mm	0.64 mm	0.025 in			60	8	52
Samtec Inc. QMS-026-09.75-S-D-A-K-TR	Gold	Board Guide Ground Bus (Plane) Pick and Place	Surface Mount	30 Áin	0.76 Ám	2	14 mm 16 mm	52	Header Outer Shroud Contacts	0.368 in	9.35 mm	0.64 mm	0.025 in
Samtec Inc. QMS-026-01-S-D-RA-MG-K-TR	Gold	Ground Bus (Plane) Mating Guide Pick and Place	Surface Mount Right Angle Through Hole	30 Áin	0.76 Ám	2		52	Header Outer Shroud Contacts			0.64 mm	0.025 in	8.12 mm	0.32 in
Samtec Inc. QMS-026-05.75-H-D-PC4-TR	Gold	Board Guide Ground Bus (Plane) Power Pins (8)	Surface Mount Through Hole	30 Áin	0.76 Ám	2	10 mm 12 mm		Header Outer Shroud Contacts	0.212 in	5.38 mm	0.64 mm	0.025 in			60	8	52
Samtec Inc. QMS-026-02-S-D-RA-PC4	Gold	Ground Bus (Plane) Power Pins (8)	Surface Mount Right Angle Through Hole	30 Áin	0.76 Ám	2			Header Outer Shroud Contacts			0.64 mm	0.025 in	8.12 mm	0.32 in	60	8	52

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	150	$ 14.11

Description

General part information

QMS-026 Series

Isolated DC/DC Converters - Through Hole

Documents

Technical documentation and resources

No documents available
