324011

Active

TE Connectivity AMP Connectors

PIDG R OFS 22-16COM22-18MIL 10

324011

Active

TE Connectivity AMP Connectors

PIDG R OFS 22-16COM22-18MIL 10

Description Specifications Series Pricing CAD Documents

Description

General part information

3240 Series

Closed Ring Tongue Terminal, 22 – 16 AWG, #6 / M3.5 Stud, 3.51 mm [.138 in] Stud Diameter, Closed Barrel, Offset, Tin Plating, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification	324011

Color	Red
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Offset Holes
Insulation	Insulated
Insulation Diameter (Max)	0.125 in
Insulation Diameter (Min)	0.08 in
Length - Overall	0.906 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Width - Outer Edges	0.375 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

3240 Series

Part	Insulation	Features	Contact Material	Stud/Tab Size	Color	Termination	Mounting Type	Contact Finish	Thickness	Width - Outer Edges	Terminal Type	Length - Overall	Wire Gauge	Material - Insulation	Insulation Diameter	Tongue Inside Opening	Length - Termination	Insulation Diameter (Min)	Insulation Diameter (Max)	Length - Ring Center to Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Stud/Tab Size	Stud/Tab Size (Type)
TE Connectivity AMP Connectors 324046	Insulated	Serrated Termination	Copper	10 Stud	Blue	Crimp	Free Hanging (In-Line)	Tin	0.045 in	0.468 in	Circular	1.575 in	6 AWG	Nylon PA Polyamide	0.314 in
TE Connectivity AMP Connectors 324082	Insulated	Serrated Termination	Copper	0.25 Stud	Red	Crimp	Free Hanging (In-Line)	Tin	0.04 in	0.478 in	Circular	1.425 in	8 AWG	Nylon PA Polyamide	0.256 in

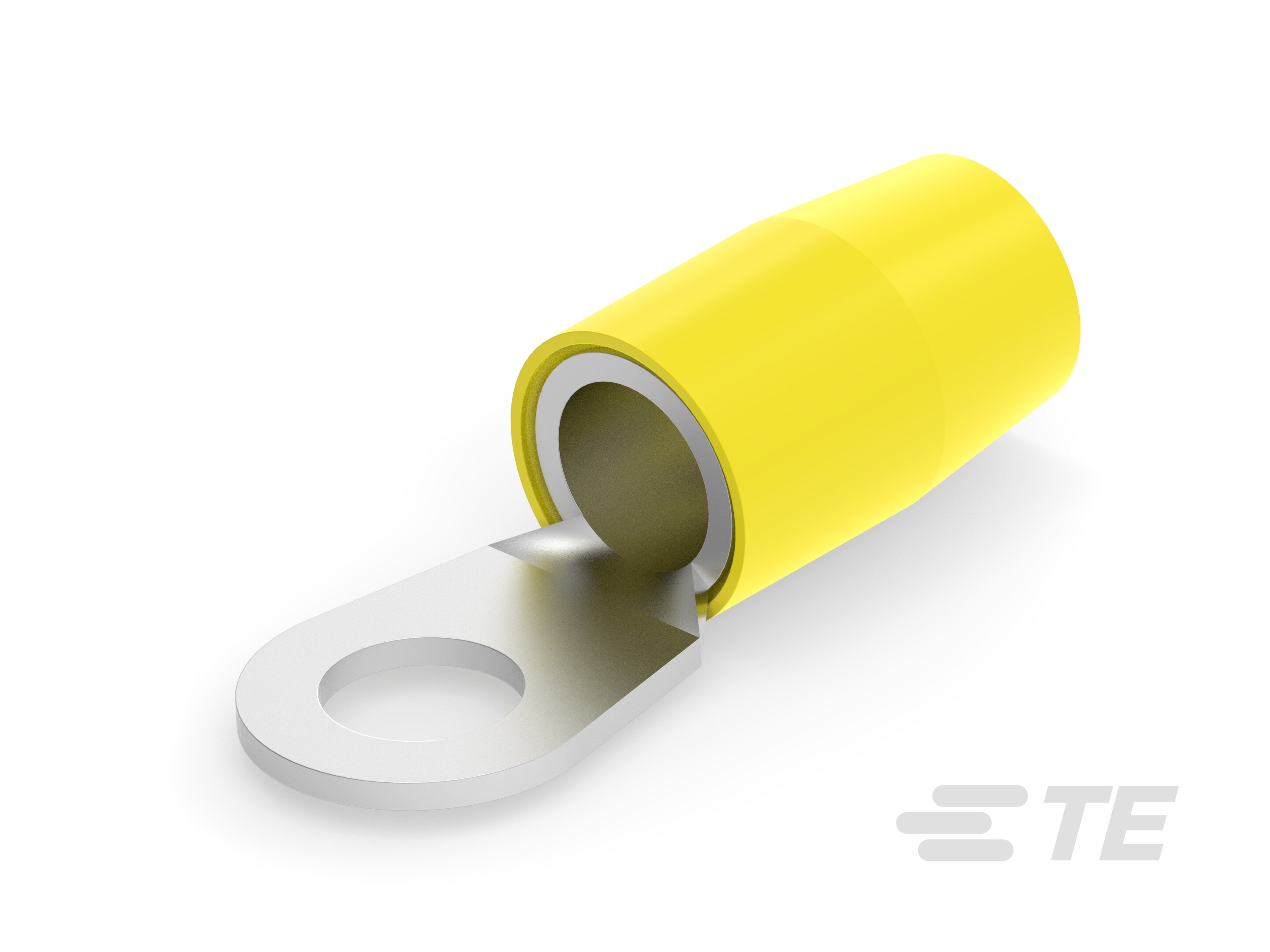

TE Connectivity AMP Connectors 324085	Insulated	Serrated Termination	Copper	0.5 Stud	Yellow	Crimp	Free Hanging (In-Line)	Tin	0.08 in	0.926 in	Circular	2.416 in	2/0 AWG	Nylon PA Polyamide	0.61 in
TE Connectivity AMP Connectors 324050	Insulated	Serrated Termination	Copper	0.25 Stud	Yellow	Crimp	Free Hanging (In-Line)	Tin	0.048 in	0.546 in	Circular	1.812 in	4 AWG	Nylon PA Polyamide	0.382 in
TE Connectivity AMP Connectors 32403	Insulated	Serrated Termination	Copper	6 Stud	Red	Crimp	Free Hanging (In-Line)	Tin		0.344 in	Standard	0.783 in		Nylon PA Polyamide		0.145 in	0.404 in	0.08 in	0.125 in	0.218 in	16 AWG	22 AWG
TE Connectivity AMP Connectors 324045	Insulated	Serrated Termination	Copper	0.375 in	Red	Crimp	Free Hanging (In-Line)	Tin	0.04 in	0.587 in	Circular	1.542 in	8 AWG	Nylon PA Polyamide	0.256 in								3 Stud 8 Stud
TE Connectivity AMP Connectors 324057	Insulated	Serrated Termination	Copper	0.375 in	Blue	Crimp	Free Hanging (In-Line)	Tin	0.07 in	0.807 in	Circular	2.426 in	1/0 AWG	Nylon PA Polyamide	0.58 in								3 Stud 8 Stud
TE Connectivity AMP Connectors 324051	Insulated	Serrated Termination	Copper	0.3125 in	Yellow	Crimp	Free Hanging (In-Line)	Tin	0.048 in	0.679 in	Circular	1.878 in	4 AWG	Nylon PA Polyamide	0.382 in								16 Stud 5 Stud	Stud
TE Connectivity AMP Connectors 324086	Insulated	Serrated Termination	Copper	12 Stud	Blue	Crimp	Free Hanging (In-Line)	Tin	0.031 in	0.469 in	Circular	1.078 in		Nylon PA Polyamide				0.115 in	0.17 in		14 AWG	16 AWG
TE Connectivity AMP Connectors 324011	Insulated	Offset Holes Serrated Termination	Copper	10 Stud	Red	Crimp	Free Hanging (In-Line)	Tin	0.031 in	0.375 in	Circular	0.906 in		Nylon PA Polyamide				0.08 in	0.125 in		16 AWG	22 AWG
