SAJ405XHL0N30SNOLLQ

Active

TE Connectivity Raychem Cable Protection

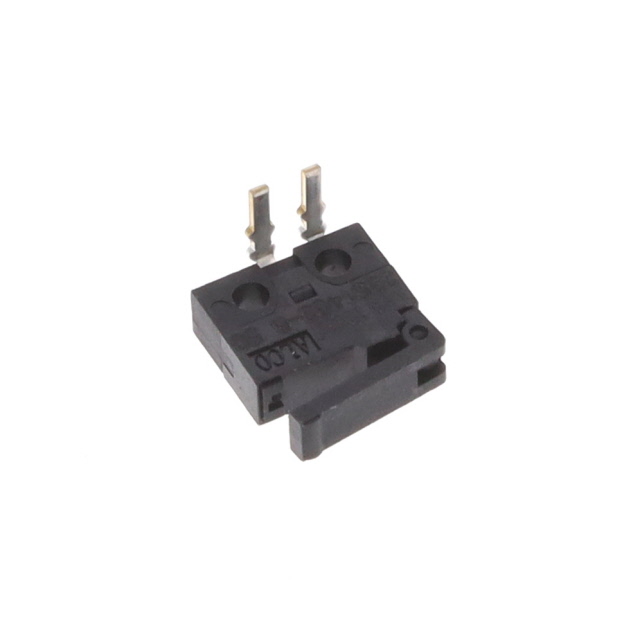

SWITCH SNAP ACT SPST-NO 0.5A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SAJ405XHL0N30SNOLLQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACT SPST-NO 0.5A 30V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SAJ405XHL0N30SNOLLQ

Actuator Type	Lever, Straight
Circuit	SPST-NO
Current Rating (Amps)	500 mA
Differential Travel	0.028 in
Differential Travel	0.7 mm
Electrical Life	50000 Cycles
Mechanical Life	100000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	50 gf
Operating Position [custom]	6.7 mm
Operating Position [custom]	0.264 "
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.3 mm
Overtravel	0.011 in
Pretravel	0.071 in
Pretravel	1.8 mm
Release Force	3 gf
Switch Function	Off-Mom
Termination Style	PC Pin
Voltage Rating - DC	30 V

SAJ405 Series

Part	Operating Position [custom]	Operating Position [custom]	Current Rating (Amps)	Termination Style	Mechanical Life	Mounting Type	Circuit	Switch Function	Operating Force	Release Force	Voltage Rating - DC	Pretravel	Pretravel	Overtravel	Overtravel	Actuator Type	Electrical Life	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Raychem Cable Protection SAJ405XHL0N30SNCSLQ	6.7 mm	0.264 "	500 mA	PC Pin	100000 Cycles	Through Hole Right Angle	SPST-NC	On-Mom	50 gf	3 gf	30 V	0.071 in	1.8 mm	0.3 mm	0.011 in	Lever Straight	50000 Cycles	0.028 in	0.7 mm	85 °C	-40 °C
TE Connectivity Raychem Cable Protection SAJ405XHL0N30SNOSRQ	6.7 mm	0.264 "	500 mA	PC Pin	100000 Cycles	Through Hole Right Angle	SPST-NO	Off-Mom	50 gf	3 gf	30 V	0.071 in	1.8 mm	0.3 mm	0.011 in	Lever Straight	50000 Cycles	0.028 in	0.7 mm	85 °C	-40 °C
TE Connectivity Raychem Cable Protection SAJ405XHL0N30SNOLLQ	6.7 mm	0.264 "	500 mA	PC Pin	100000 Cycles	Through Hole Right Angle	SPST-NO	Off-Mom	50 gf	3 gf	30 V	0.071 in	1.8 mm	0.3 mm	0.011 in	Lever Straight	50000 Cycles	0.028 in	0.7 mm	85 °C	-40 °C
TE Connectivity Raychem Cable Protection SAJ405XHL0N30SDTSRQ	6.7 mm	0.264 "	500 mA	PC Pin	100000 Cycles	Through Hole Right Angle	SPDT	On-Mom	50 gf	3 gf	30 V	0.071 in	1.8 mm	0.3 mm	0.011 in	Lever Straight	50000 Cycles	0.028 in	0.7 mm	85 °C	-40 °C
TE Connectivity Raychem Cable Protection SAJ405XHL0N30SNCUPQ	6.7 mm	0.264 "	500 mA	PC Pin	100000 Cycles	Through Hole	SPST-NC	On-Mom	50 gf	3 gf	30 V	0.071 in	1.8 mm	0.3 mm	0.011 in	Lever Straight	50000 Cycles	0.028 in	0.7 mm	85 °C	-40 °C
TE Connectivity Raychem Cable Protection SAJ405XHL0N30SDTLRQ	6.7 mm	0.264 "	500 mA	PC Pin	100000 Cycles	Through Hole Right Angle	SPDT	On-Mom	50 gf	3 gf	30 V	0.071 in	1.8 mm	0.3 mm	0.011 in	Lever Straight	50000 Cycles	0.028 in	0.7 mm	85 °C	-40 °C
TE Connectivity Raychem Cable Protection SAJ405XHL0N30SDTLLQ	6.7 mm	0.264 "	500 mA	PC Pin	100000 Cycles	Through Hole Right Angle	SPDT	On-Mom	50 gf	3 gf	30 V	0.071 in	1.8 mm	0.3 mm	0.011 in	Lever Straight	50000 Cycles	0.028 in	0.7 mm	85 °C	-40 °C
TE Connectivity Raychem Cable Protection SAJ405XHL0N30SDTUPQ	6.7 mm	0.264 "	500 mA	PC Pin	100000 Cycles	Through Hole	SPDT	On-Mom	50 gf	3 gf	30 V	0.071 in	1.8 mm	0.3 mm	0.011 in	Lever Straight	50000 Cycles	0.028 in	0.7 mm	85 °C	-40 °C
TE Connectivity Raychem Cable Protection SAJ405XHL0N30SDTSLQ	6.7 mm	0.264 "	500 mA	PC Pin	100000 Cycles	Through Hole Right Angle	SPDT	On-Mom	50 gf	3 gf	30 V	0.071 in	1.8 mm	0.3 mm	0.011 in	Lever Straight	50000 Cycles	0.028 in	0.7 mm	85 °C	-40 °C
TE Connectivity Raychem Cable Protection SAJ405XHL0N30SNOSLQ	6.7 mm	0.264 "	500 mA	PC Pin	100000 Cycles	Through Hole Right Angle	SPST-NO	Off-Mom	50 gf	3 gf	30 V	0.071 in	1.8 mm	0.3 mm	0.011 in	Lever Straight	50000 Cycles	0.028 in	0.7 mm	85 °C	-40 °C
