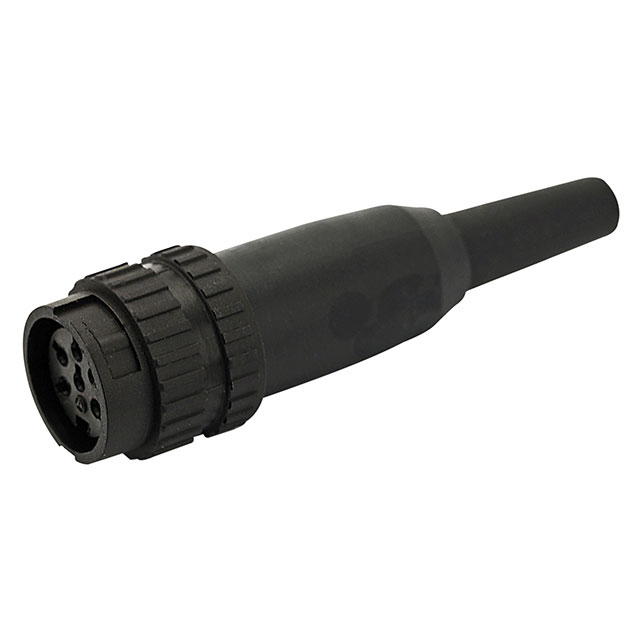

T 3428 991

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 6P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 6P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fastening Type	Contact Finish - Mating	Primary Material	Shell Size - Insert	Orientation	Number of Positions	Ingress Protection	Voltage Rating	Connector Type	Shell Material	Current Rating (Amps)	Features
Amphenol Tuchel Industrial T 3428 991	100 °C	-40 °C	Free Hanging (In-Line)	Bayonet Lock	Silver	Plastic	M16-6	Keyed	6	IP40	250 VDC	Female Sockets Plug	Plastic	7 A	Strain Relief
Amphenol Tuchel Industrial T 3428 502	100 °C	-40 °C	Free Hanging (In-Line)	Bayonet Lock	Silver	Plastic	M16-6	Keyed	6	IP40	250 VDC	Female Sockets Plug	Plastic	7 A	Cable Clamp Strain Relief
Amphenol Tuchel Industrial T 3428 518	100 °C	-40 °C	Free Hanging (In-Line)	Bayonet Lock	Gold	Plastic	M16-6	Keyed	6	IP40	250 VDC	Female Sockets Plug	Plastic	7 A	Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 8.41

General part information

6 Position Circular Connector Plug, Female Sockets Solder Cup
