A99100-031

Active

Omnetics

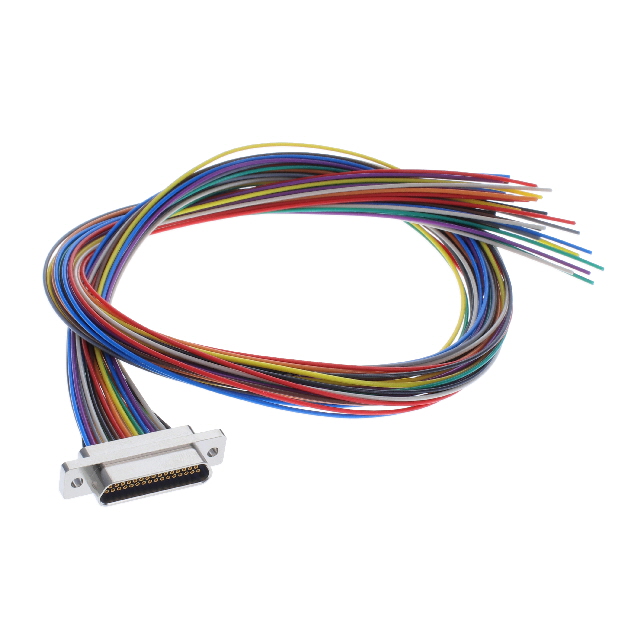

CABLE ASSY D-MIC-D 31P 457.2MM

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY D-MIC-D 31P 457.2MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A99100-031	MMDS-031 Series

1st Connector	Receptacle, Female Sockets	Receptacle, Female Sockets
2nd Connector	Individual Wire Leads	Individual Wire Leads
Color	Multiple, Individual	Multiple, Individual
Connector Style	-	Micro-D, D-Type
Connector Type	-	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	-	Stamped
Contact Material	-	Copper Alloy
Contact Type	-	Signal
Current Rating (Amps)	-	3 A
Dielectric Material	-	Thermoplastic
Flange Feature	-	Housing/Shell (Unthreaded)
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	31	31
Number of Rows	-	2
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Shell Material, Finish	-	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout	-	0.05
Shell Size, Connector Layout	-	0.05
Shielding	Unshielded	Unshielded
Type	D-Type, Micro-D	D-Type, Micro-D

CABLE ASSY D-MIC-D 31P 457.2MM

Part	Color	Shielding	Contact Finish Thickness	Contact Finish Thickness	Type	Length [x]	Length [x]	Contact Finish	1st Connector	Number of Positions	2nd Connector	Shell Material, Finish	Contact Form	Connector Style	Contact Material	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Dielectric Material	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Current Rating (Amps)
Omnetics A99100-031	Individual, Multiple	Unshielded	50 µin	1.27 µm	D-Type, Micro-D	457.2 mm	1.5 ft	Gold	Female Sockets, Receptacle	31	Individual Wire Leads
Omnetics A99000-031			50 µin	1.27 µm				Gold		31		Aluminum, Electroless, Nickel Plated	Stamped	D-Type, Micro-D	Copper Alloy	Free Hanging (In-Line)	Receptacle, Female Sockets	-55 °C	125 °C	Signal	Thermoplastic	2	0.05	0.05	Housing/Shell (Unthreaded)	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded

Technical documentation and resources

No documents available
