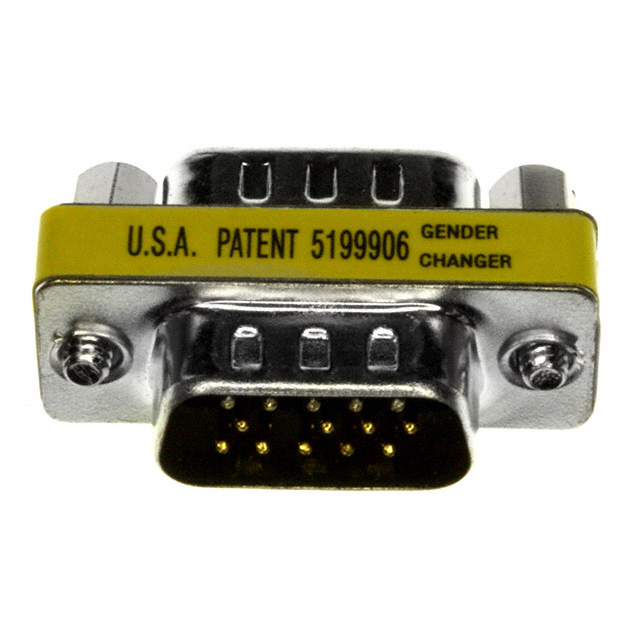

GCHDLP15M15M - GCHDLP15M15M

GCHDLP15M15M

Active
MH Connectors

D SUB CONNECTOR ADAPTER, HIGH DENSITY D SUB, PLUG, 15 POSITIONS, HIGH DENSITY D SUB, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDrawing EN+2
GCHDLP15M15M - GCHDLP15M15M

GCHDLP15M15M

Active
MH Connectors

D SUB CONNECTOR ADAPTER, HIGH DENSITY D SUB, PLUG, 15 POSITIONS, HIGH DENSITY D SUB, PLUG

Deep-Dive with AI

DocumentsDatasheetDrawing EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationGCHDLP15M15M
Connector StyleVideo Adapter
Contact FinishGold
Contact Finish ThicknessFlash
Convert From (Adapter End)15 HD, Male, D-Sub
Convert To (Adapter End)D-Sub, Male, 15 HD
Current Rating (Amps)3 A
Housing ColorYellow
Includes1 Connector, 2 Jack Screws
Material Flammability RatingUL94 V-0
Number of Rows3
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 9.59
10$ 7.35
25$ 6.64
40$ 6.31
80$ 5.86
230$ 5.25
440$ 4.92
945$ 4.56
NewarkEach 50$ 5.09
100$ 4.80
250$ 4.56
500$ 4.34

Description

General part information

GCHDLP1 Series

Adapter Connector D-Sub, 15 HD, Male To D-Sub, 15 HD, Male Panel Mount
