1394918-5
ActiveTE Connectivity AMP Connectors

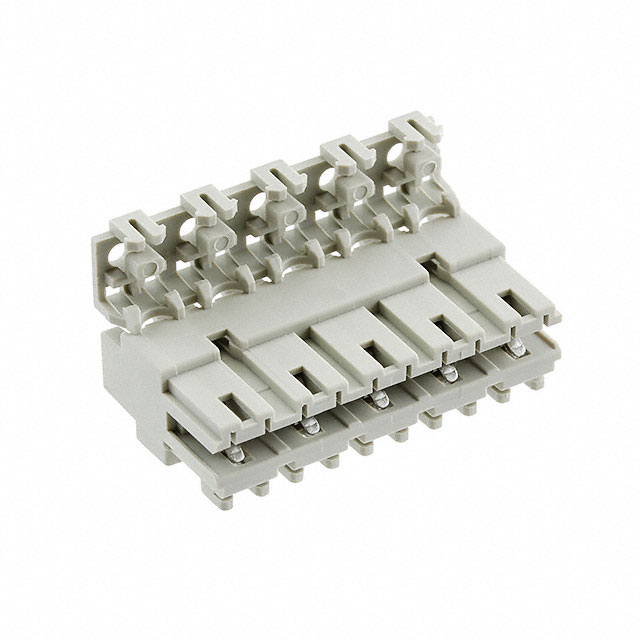

CONN RCPT 5POS IDC TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1394918-5
ActiveTE Connectivity AMP Connectors
CONN RCPT 5POS IDC TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1394918-5 | 1394918 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Gray | Gray |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Tin | Tin |
| Contact Type | Female Socket | Female Socket |
| Features | Mates to PCB | Mates to PCB |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | - | 2 - 7 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Wire Type | Discrete | Discrete |
1394918 Series
CONN RCPT 2POS IDC TIN
| Part | Features | Color | Cable Termination | Number of Positions | Contact Finish | Pitch [x] | Pitch [x] | Contact Type | Number of Rows | Mounting Type | Wire Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1394918-2 | Mates to PCB | Gray | IDC | 2 | Tin | 5 mm | 0.197 in | Female Socket | 1 | Free Hanging (In-Line), Right Angle | Discrete | Receptacle |
TE Connectivity AMP Connectors 1394918-5 | Mates to PCB | Gray | IDC | Tin | 5 mm | 0.197 in | Female Socket | 1 | Free Hanging (In-Line), Right Angle | Discrete | Receptacle | |
TE Connectivity AMP Connectors 1394918-4 | Mates to PCB | Gray | IDC | 4 | Tin | 5 mm | 0.197 in | Female Socket | 1 | Free Hanging (In-Line), Right Angle | Discrete | Receptacle |
TE Connectivity AMP Connectors 2-1394918-3 | Mates to PCB | Gray | IDC | Tin | 5 mm | 0.197 in | Female Socket | 1 | Free Hanging (In-Line), Right Angle | Discrete | Receptacle | |
TE Connectivity AMP Connectors 1394918-7 | Mates to PCB | Gray | IDC | 7 | Tin | 5 mm | 0.197 in | Female Socket | 1 | Free Hanging (In-Line), Right Angle | Discrete | Receptacle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 18480 | $ 0.48 | |
Description
General part information
1394918 Series
5 Position Rectangular Receptacle Connector IDC Tin
