FTMH-121-02-L-DV-ES

Active

Samtec Inc.

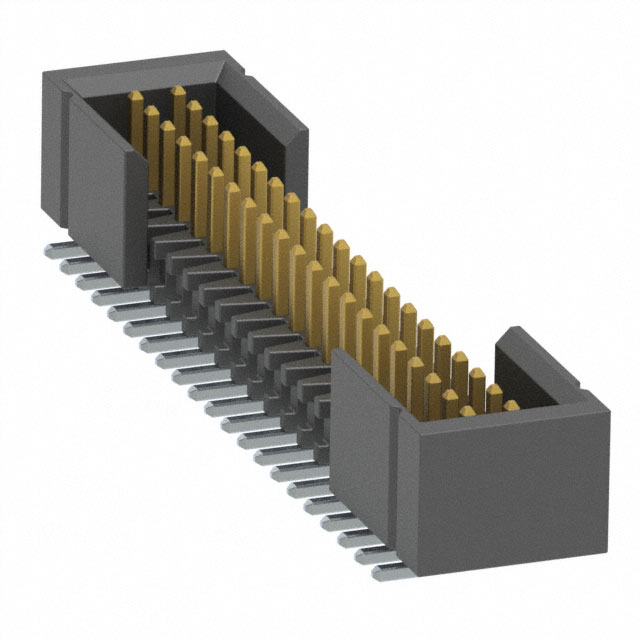

CONN HEADER SMD 42POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FTMH-121-02-L-DV-ES

Active

Samtec Inc.

CONN HEADER SMD 42POS 1MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTMH-121-02-L-DV-ES

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	End Shrouds
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	42
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTMH-121 Series

Part	Contact Type	Number of Positions	Insulation Color	Contact Finish - Post	Termination	Contact Material	Number of Positions Loaded	Number of Rows	Connector Type	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Shrouding	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Mounting Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Material Flammability Rating	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. FTMH-121-03-F-DV-P-TR	Male Pin	42	Black	Tin	Solder	Phosphor Bronze	All	2	Header	Pick and Place	0.039 "	1 mm	Gold	Unshrouded	2.8 A per Contact	3 µin	0.076 µm	1.5 mm	0.059 "	Surface Mount	Square	-55 °C	125 °C	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	0.065 in	1.65 mm
Samtec Inc. FTMH-121-02-F-DV-ES	Male Pin	42	Black	Tin	Solder	Phosphor Bronze	All	2	Header	End Shrouds	0.039 "	1 mm	Gold	Unshrouded	2.8 A per Contact	3 µin	0.076 µm	1.5 mm	0.059 "	Surface Mount	Square	-55 °C	125 °C	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	0.039 in	1 mm			1.9 mm	0.075 in
Samtec Inc. FTMH-121-02-L-DV-ES	Male Pin	42	Black	Tin	Solder	Phosphor Bronze	All	2	Header	End Shrouds	0.039 "	1 mm	Gold	Unshrouded	2.8 A per Contact	10 çin	0.25 çm	1.5 mm	0.059 "	Surface Mount	Square	-55 °C	125 °C	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	0.039 in	1 mm			1.9 mm	0.075 in
Samtec Inc. FTMH-121-03-F-DV-A-TR	Male Pin	42	Black	Tin	Solder	Phosphor Bronze	All	2	Header	Board Guide	0.039 "	1 mm	Gold	Unshrouded	2.8 A per Contact	3 µin	0.076 µm	1.5 mm	0.059 "	Surface Mount	Square	-55 °C	125 °C	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	0.065 in	1.65 mm
Samtec Inc. FTMH-121-03-F-DH	Male Pin	42	Black	Tin	Solder	Phosphor Bronze	All	2	Header		0.039 "	1 mm	Gold	Unshrouded	2.8 A per Contact	3 µin	0.076 µm	3.18 mm	0.125 in	Surface Mount Right Angle	Square	-55 °C	125 °C	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	0.065 in	1.65 mm
Samtec Inc. FTMH-121-02-L-DV	Male Pin	42	Black	Tin	Solder	Phosphor Bronze	All	2	Header		0.039 "	1 mm	Gold	Unshrouded	2.8 A per Contact	10 çin	0.25 çm	1.5 mm	0.059 "	Surface Mount	Square	-55 °C	125 °C	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	0.039 in	1 mm			1.9 mm	0.075 in
Samtec Inc. FTMH-121-02-F-DH	Male Pin	42	Black	Tin	Solder	Phosphor Bronze	All	2	Header		0.039 "	1 mm	Gold	Unshrouded	2.8 A per Contact	3 µin	0.076 µm	3.18 mm	0.125 in	Surface Mount Right Angle	Square	-55 °C	125 °C	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	0.039 in	1 mm			1.9 mm	0.075 in
Samtec Inc. FTMH-121-03-L-DH	Male Pin	42	Black	Tin	Solder	Phosphor Bronze	All	2	Header		0.039 "	1 mm	Gold	Unshrouded	2.8 A per Contact	10 çin	0.25 çm	3.18 mm	0.125 in	Surface Mount Right Angle	Square	-55 °C	125 °C	Push-Pull	UL94 V-0	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	0.065 in	1.65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	25	$ 9.19

Description

General part information

FTMH-121 Series

Connector Header Surface Mount 42 position 0.039" (1.00mm)

Documents

Technical documentation and resources
