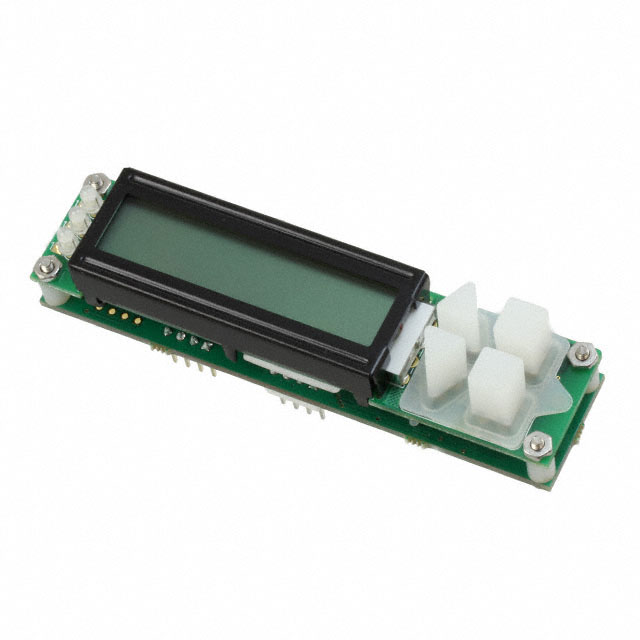

LK162A-4T-USB-FGW

Active

Matrix Orbital

LCD MOD 32DIG 16X2 TRANSMISV WHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LK162A-4T-USB-FGW

Active

Matrix Orbital

LCD MOD 32DIG 16X2 TRANSMISV WHT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LK162A-4T-USB-FGW

Background Color	White
Backlight	LED - White
Character Size [y]	3.95 mm
Character Size [z]	2.45 mm
Display Format [x]	16
Display Format [y]	2
Display Mode	Transmissive
Display Type	LCD - Monochrome
Interface	I2C, USB, TTL, RS-232
Number of Characters	32
Outline L x W x H [x]	96.4 mm
Outline L x W x H [y]	23 mm
Outline L x W x H [z]	31.14 mm
Text Color	Black
Viewing Area [x]	51.6 mm
Viewing Area [y]	11.9 mm
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

LK162 Series

Part	Number of Characters	Text Color	Character Format [y]	Character Format [x]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Dot Size [x]	Dot Size [y]	Display Type	Backlight	Interface	Display Format [y]	Display Format [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Size [y]	Character Size [z]	Viewing Area [x]	Viewing Area [y]	Background Color	Operating Temperature [Min]	Operating Temperature [Max]	Display Mode	Character Format
Matrix Orbital LK162-12-R	32	Red	8 Dots	5 Dots	28.82 mm	36 mm	80 mm	0.55 mm	0.65 mm	LCD - Monochrome	LED - Red	I2C RS-232 TTL	2	16	4.75 V	5.25 V	2.95 mm	5.55 mm	56.2 mm	11.5 mm	Black
Matrix Orbital LK162-12-R-V-E	32	Red	8 Dots	5 Dots	28.82 mm	36 mm	80 mm	0.56 mm	0.65 mm	LCD - Monochrome		I2C RS-232 TTL	2	16	9 V	15 V	2.95 mm	5.55 mm	56.2 mm	11.5 mm	Black	-20 C	70 °C
Matrix Orbital LK162B-7T-USB-WB-E	32	White	8 Dots	5 Dots	31.14 mm	23 mm	96.4 mm	0.55 mm	0.65 mm	LCD - Monochrome	LED - White	I2C RS-232 TTL USB	2	16	4.75 V	5.25 V	3.95 mm	2.45 mm	51.6 mm	11.9 mm	Blue	-20 C	70 °C	Transmissive
Matrix Orbital LK162A-4T-TCI-E	32	Blue Green Red			31.14 mm	23 mm	96.4 mm			LCD - Monochrome	Blue Green LED Red	I2C RS-232 TTL	2	16	4.75 V	5.25 V	3.95 mm	2.45 mm	51.6 mm	11.9 mm	Black	-20 C	70 °C	Transmissive
Matrix Orbital LK162B-7T-FGW-V	32	Black	8 Dots	5 Dots	31.14 mm	23 mm	96.4 mm	0.55 mm	0.65 mm	LCD - Monochrome	LED - White	I2C RS-232 TTL	2	16	9 V	15 V	3.95 mm	2.45 mm	51.6 mm	11.9 mm	White			Transmissive
Matrix Orbital LK162-12-USB-WB	32	White	8 Dots	5 Dots	28.82 mm	36 mm	80 mm	0.56 mm	0.65 mm	LCD - Monochrome		I2C RS-232 TTL USB	2	16	4.75 V	5.25 V	2.95 mm	5.55 mm	56.2 mm	11.5 mm	Blue
Matrix Orbital LK162-12-WB-V-E	32	White						0.5 mm	0.55 mm		LED - Blue	I2C RS-232	2	16	4.75 V	5.25 V	2.78 mm	4.89 mm	62.5 mm	26.2 mm	Blue	-20 C	70 °C		5 x 7 Dots w/Cursor
Matrix Orbital LK162B-7T-USB	32	Black	8 Dots	5 Dots	13.4 mm	35 mm	125 mm	0.55 mm	0.65 mm	LCD - Monochrome	LED - White	I2C RS-232 TTL USB	2	16	4.75 V	5.25 V	2.95 mm	5.55 mm	61 mm	11.5 mm	Green			Transmissive
Matrix Orbital LK162-12-IY-V	32	Yellow	8 Dots	5 Dots	28.82 mm	36 mm	80 mm	0.56 mm	0.65 mm	LCD - Monochrome		I2C RS-232 TTL	2	16	9 V	15 V	2.95 mm	5.55 mm	56.2 mm	11.5 mm	Black
Matrix Orbital LK162A-4T-USB-FGW	32	Black			31.14 mm	23 mm	96.4 mm			LCD - Monochrome	LED - White	I2C RS-232 TTL USB	2	16	4.75 V	5.25 V	3.95 mm	2.45 mm	51.6 mm	11.9 mm	White			Transmissive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 45.41

Description

General part information

LK162 Series

Character Display Module Transmissive LCD - Monochrome LED - White I2C, RS-232, TTL, USB 96.40mm x 23.00mm x 31.14mm
