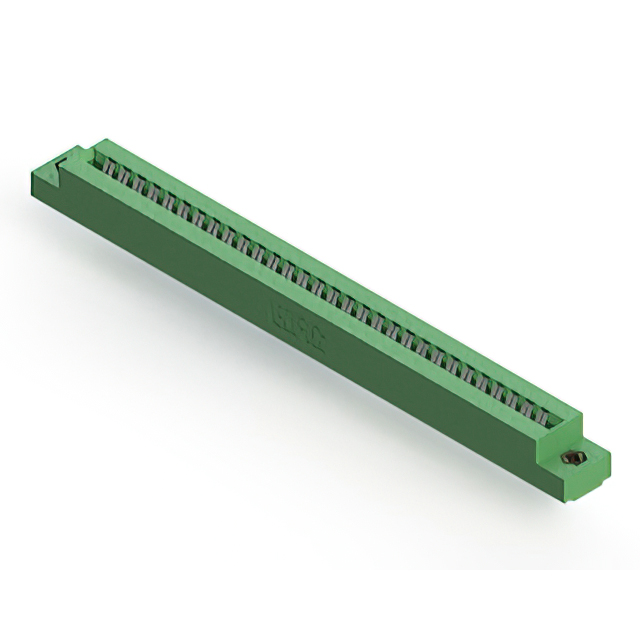

306-030-421-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
306-030-421-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-030-421-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
306-030 Series
| Part | Number of Positions | Color | Mounting Type | Contact Type | Gender | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Card Type | Number of Positions/Bay/Row [custom] | Contact Finish | Termination Rows | Features | Contact Material | Number of Rows | Pitch [x] | Pitch [x] | Read Out | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 60 | Green | Panel Mount Through Hole | Cantilever | Female | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | Tin | 1 | Card Guides | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | 60 | Green | Cantilever | Female | Solder Eyelet(s) | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | Tin | 1 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | 0.156 in | ||||
EDAC Inc. | 60 | Green | Through Hole | Cantilever | Female | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | Gold | 1 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 60 | Green | Through Hole | Cantilever | Female | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | Tin | 1 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||||
EDAC Inc. | 60 | Green | Panel Mount Through Hole | Cantilever | Female | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | Tin | 1 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | |||
EDAC Inc. | 60 | Green | Cantilever | Female | Solder Eyelet(s) | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | Tin | 1 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | ||||
EDAC Inc. | 60 | Green | Panel Mount Through Hole | Cantilever | Female | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | Gold | 1 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 60 | Green | Panel Mount Through Hole | Cantilever | Female | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | Tin | 1 | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 60 | Green | Panel Mount Through Hole | Cantilever | Female | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | Gold | 1 | Card Guides | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 60 | Green | Panel Mount Through Hole | Cantilever | Female | Solder | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | 30 | Gold | 1 | Card Guides | Copper Alloy | 2 | 0.156 in | 3.96 mm | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
306-030 Series
60 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
