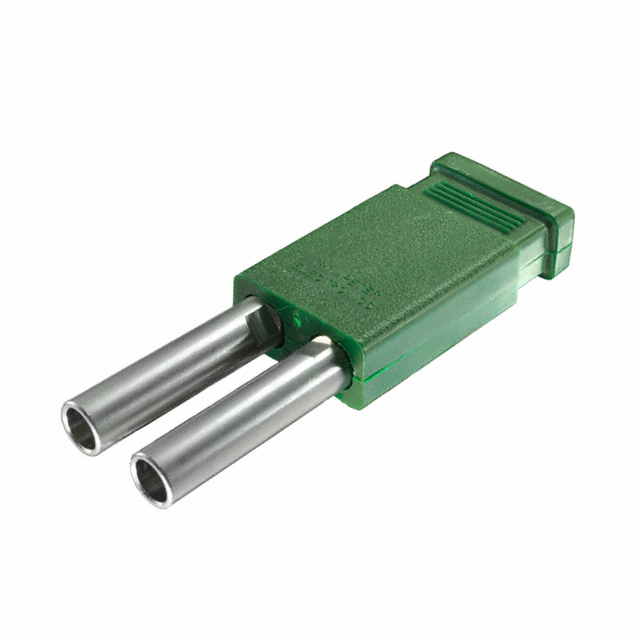

| Accessory Type | Looping Plug | Looping Plug, Cable Holder |
| Adapter Series | - | TRB Twinaxial/Triaxial to Twinaxial, BNC to WECo, TRS to TRS, SMA to TRB, TRT Twinaxial/Triaxial to TRT Twinaxial/Triaxial, SMP to TRB, N to N, TRB Twinaxial/Triaxial to TRB Twinaxial/Triaxial, BNC to BNC, Dual, TRB Twinaxial/Triaxial to TRB Twinaxial/Triaxial, Dual |
| Adapter Type | - | Jack to Jack, Plug to Jack |
| Body Finish | - | Nickel, Tin |
| Body Material | - | Brass |
| Cable Type | - | Coaxial Cable |
| Center Contact Material | - | Beryllium Copper |
| Center Contact Plating | - | Gold |
| Center Gender | - | Female to Female, Non-Gendered to Non-Gendered |
| Color | Blue | Blue, Silver, Black, Beige, Violet |
| Connector Style | - | BNC, TRS, Twinaxial/Triaxial, TRT, TRB, TTM, Mini |
| Connector Type | - | Female Socket, Jack, Female Socket (Concentric), Male Pin, Plug |
| Contact Termination | - | Solder, Solder Cup |
| Conversion Type | - | Between Series, Same Series |
| Convert From (Adapter End) | - | TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket, BNC Jack, Female Socket (2), BNC Jack, Female Socket, N Jack, TRS Twinaxial/Triaxial (Concentric) Jack, Female Socket, TRB Twinaxial/Triaxial Jack, Female Socket, TRT Twinaxial/Triaxial Jack, Female Socket, RCA Plug, Male Pin, BNC Plug, Male Pin, TRB Twinaxial/Triaxial (Concentric ) Plug, Male Pin |
| Convert To (Adapter End) | - | Twinaxial Jack, Female Socket, WECo, Female Socket (2), Mini Jack, RCA Jack, Male Pin, Standard Plug, Standard Jack, TRS Twinaxial/Triaxial (Concentric) Jack, Female Socket, SMA Jack, TRT Twinaxial/Triaxial Jack, Female Socket, N Jack, Standard, TRB Twinaxial/Triaxial Jack, Female Socket, BNC Jack, TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket, RCA Plug, TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket (2), Twinaxial/Triaxial Jack, Female Socket (2 |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Bayonet Lock, Push-Pull, Threaded, Snap-On |
| Features | - | Three Lug, Mounting Hardware, Flange, Four Lug, Extended Insulation, Full Detent, Color Coded |
| For Use With/Related Products | RCA Coaxial Connectors | RCA Coaxial Connectors |
| Frequency - Max | - | 2.5 - 500 MHz |
| Housing Color | - | Silver |
| Impedance | - | 50 - 75 Ohms |
| Impedance | - | Non-Constant |
| Includes | - | 2 Screws, 1 Connector, 1 Nut, 1 Lockwasher, Connector, Washer, Nut, 1 Gasket, 2 Lockwashers, 2 Nuts |
| Mating Cycles | - | 500 |
| Mounting Feature | - | Flange, Bulkhead, Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut |
| Mounting Type | - | Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount |
| Number of Ports | - | 1 |
| Number of Positions | 2 | 2 |
| Operating Temperature | - | -65 ░C |
| Operating Temperature | - | 165 - 200 °C |
| Shield Termination | - | Solder, Solder Tag |
| Style | - | Straight, U-Shape, T-Shape |
| Type | - | Stripper, Cutter |
| Voltage Rating | - | 400 - 500 V |
