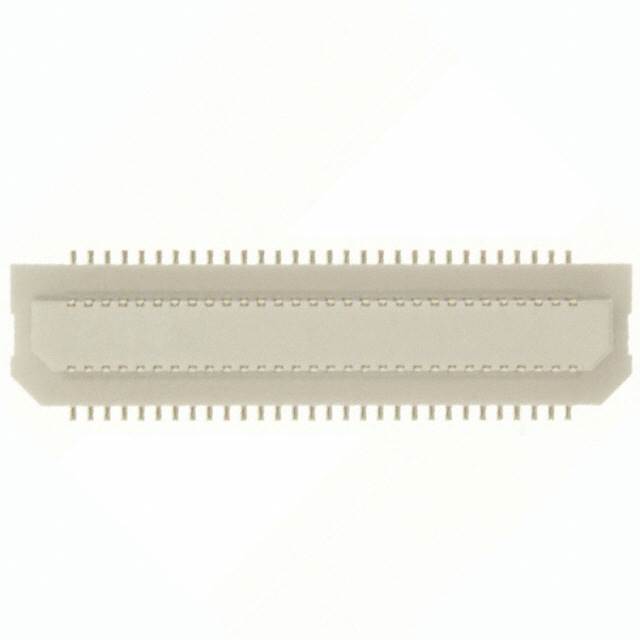

AXK6S60447YG
ActivePanasonic Electric Works
CONN HDR 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXK6S60447YG
ActivePanasonic Electric Works
CONN HDR 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXK6S60447YG |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.13 in |
| Height Above Board | 3.3 mm |
| Mated Stacking Heights | 4 mm, 4.5 mm, 7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.52 | |
| 10 | $ 2.29 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.12 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.77 | |||
| 500 | $ 1.72 | |||
| Digi-Reel® | 1 | $ 2.52 | ||
| 10 | $ 2.29 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.12 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.77 | |||
| 500 | $ 1.72 | |||
| Tape & Reel (TR) | 1500 | $ 1.41 | ||
| 3000 | $ 1.36 | |||
| 7500 | $ 1.31 | |||
Description
General part information
AXK6S60447 Series
60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
