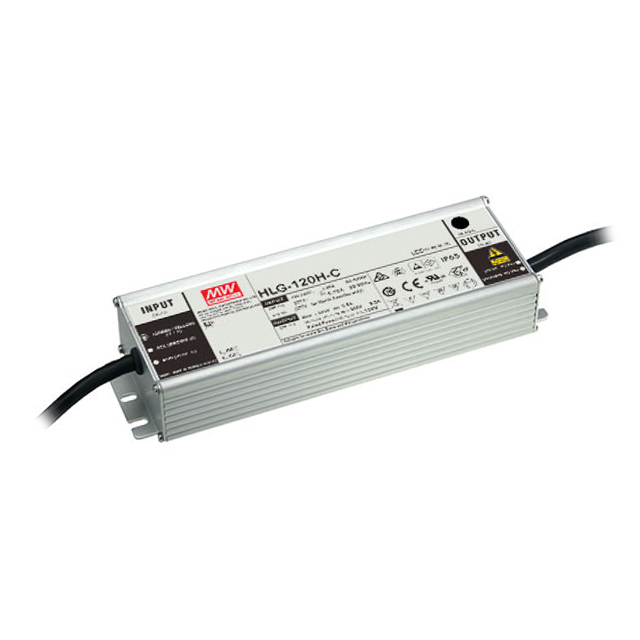

HLG-120H-C500A

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 150-300V 500MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLG-120H-C500A

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 150-300V 500MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-120H-C500A

Approval Agency	CCC, RCM, PSE, CE, CB, ENEC, cURus
Current - Output (Max) [Max]	500 mA
Efficiency	94 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	150 W
Ratings	IP65
Size / Dimension [x]	7.72 "
Size / Dimension [x]	196 mm
Size / Dimension [y]	2.68 "
Size / Dimension [y]	68 mm
Size / Dimension [z]	1.53 in
Size / Dimension [z]	38.8 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	300 V
Voltage - Output [Min]	150 V

HLG-120H Series

Part	Current - Output (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Termination Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Dimming	Ratings	Voltage - Isolation	Type	Power (Watts)	Voltage - Input (Min) [Min]	Features	Approval Agency	Topology	Voltage - Input (Max) [Max]	Mounting Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output
MEAN WELL USA Inc. HLG-120H-15B	8 A	7.5 V	15 V	Wire Leads	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	92 %	Analog PWM	IP67	3750 V	Constant Current Voltage	120 W	90 VAC	OCP OTP OVP SCP	CB CCC CE cURus ENEC PSE RCM TUV	AC DC Converter	305 VAC	Chassis Mount	1	-40 °C	80 C
MEAN WELL USA Inc. HLG-120H-30B	4 A	15 V	30 VDC	Wire Leads	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	93 %	Analog PWM	IP67	3750 V	Constant Current Voltage	120 W	90 VAC	OCP OTP OVP SCP	CB CCC CE cURus ENEC PSE RCM TUV	AC DC Converter	305 VAC	Chassis Mount	1	-40 °C	80 C
MEAN WELL USA Inc. HLG-120H-C500A	500 mA	150 V	300 V	Wire Leads	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	94 %		IP65	3750 V	Constant Current	150 W	90 VAC	OTP OVP SCP	CB CCC CE cURus ENEC PSE RCM	AC DC Converter	305 VAC	Chassis Mount	1	-40 °C	90 °C
MEAN WELL USA Inc. HLG-120H-48B	2.5 A	24 V	48 V	Wire Leads	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	93.5 %	Analog PWM	IP67	3750 V	Constant Current Voltage	120 W	90 VAC	OCP OTP OVP SCP	CB CCC CE cURus ENEC PSE RCM TUV	AC DC Converter	305 VAC	Chassis Mount	1	-40 °C	80 C
MEAN WELL USA Inc. HLG-120H-C1050A	1.05 A	74 V	148 V	Wire Leads	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	94 %		IP65	3750 V	Constant Current	155 W	90 VAC	OTP OVP SCP	CB CCC CE cURus ENEC PSE RCM	AC DC Converter	305 VAC	Chassis Mount	1	-40 °C	90 °C
MEAN WELL USA Inc. HLG-120H-12	10 A	6 V	12 V	Wire Leads	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	92 %		IP67	3750 V	Constant Current Voltage	120 W	90 VAC	OCP OTP OVP SCP	CB CCC CE cURus ENEC PSE RCM TUV	AC DC Converter	305 VAC	Chassis Mount	1	-40 °C	80 C
MEAN WELL USA Inc. HLG-120H-48	2.5 A	24 V	48 V	Wire Leads	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	93.5 %		IP67	3750 V	Constant Current Voltage	120 W	90 VAC	OCP OTP OVP SCP	CB CCC CE cURus ENEC PSE RCM TUV	AC DC Converter	305 VAC	Chassis Mount	1	-40 °C	80 C
MEAN WELL USA Inc. HLG-120H-20A	6 A	17 V	22 V	Wire Leads	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	93 %		IP65	3750 V	Constant Current Voltage	120 W	90 VAC	OCP OTP OVP SCP	CB CCC CE cURus ENEC PSE RCM TUV	AC DC Converter	305 VAC	Chassis Mount	1	-40 °C	80 C
MEAN WELL USA Inc. HLG-120H-48AB	2.5 A			Wire Leads	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	93.5 %		IP65	3750 V	Constant Current Voltage	120 W	90 VAC	OCP OTP OVP SCP	CB CCC CE cURus ENEC KC PSE RCM TUV	AC DC Converter	305 VAC	Chassis Mount	1	-40 °C	80 C	48 V
MEAN WELL USA Inc. HLG-120H-24AB	5 A			Wire Leads	7.72 "	1.53 in	196 mm	38.8 mm	2.68 "	68 mm	93 %	Analog PWM	IP65	3750 V	Constant Current Voltage	120 W	90 VAC	OCP OTP OVP SCP	CB CCC CE cURus ENEC KC PSE RCM TUV	AC DC Converter	305 VAC	Chassis Mount	1	-40 °C	80 C	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 55.25
		5	$ 51.22
		10	$ 49.58
		25	$ 47.49

Description

General part information

HLG-120H Series

500mA 150 ~ 300V Constant Current LED Driver AC DC Converter Topology 1 Output
