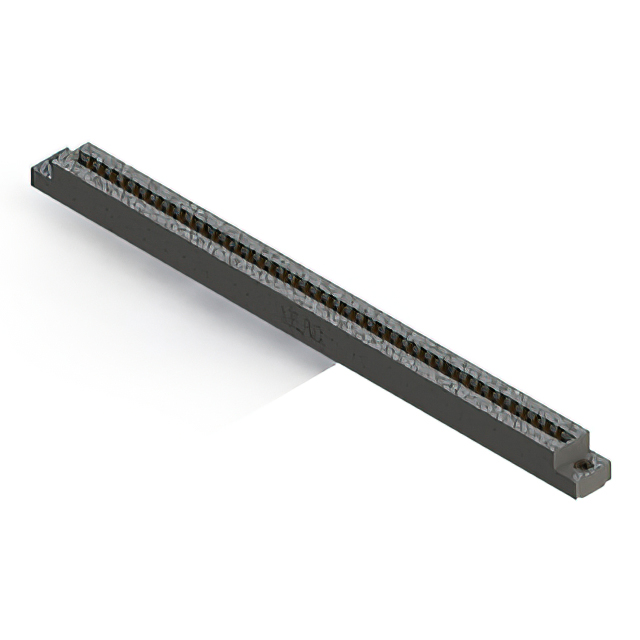

CONN EDGE DUAL FMALE 84POS 0.156

Connectors, Interconnects

356-042-521-107

Active

EDAC Inc.

CONN EDGE DUAL FMALE 84POS 0.156

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-042-521-107

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Flush Mount, Top Opening, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Panel Mount, Through Hole
Number of Positions	42, 84
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	1 rows

356-042 Series

Part	Contact Finish	Operating Temperature (Min)	Operating Temperature (Max)	Termination	Read Out	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Number of Positions	Contact Material	Card Type	Number of Rows	Pitch	Card Thickness (Min)	Card Thickness (Max)	Color	Mounting Type	Contact Type	Gender	Termination Rows	Material - Insulation	Features
EDAC Inc. 356-042-521-103	Gold	-40 °C	105 °C	Solder	Dual	0.116 in	Floating Bobbin Flush Mount	10 Ąin	42 84	Copper Alloy	Dual Edge Non Specified	2	0.156 in	0.054 in	0.07 in	Black	Panel Mount Through Hole	Cantilever	Female	1 rows	Polyester Thermoplastic
EDAC Inc. 356-042-500-178	Gold	-40 °C	105 °C	Solder Eyelet(s)	Dual		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	42 84	Copper Alloy	Dual Edge Non Specified	2	0.156 in	0.054 in	0.07 in	Black	Panel Mount	Cantilever	Female	1 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 356-042-420-158	Tin	-40 °C	105 °C	Solder	Dual		4-40 Flush Mount Threaded Insert Top Opening		42 84	Copper Alloy	Dual Edge Non Specified	2	0.156 in	0.054 in	0.07 in	Black	Panel Mount Through Hole	Cantilever	Female	1 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 356-042-520-158	Gold	-40 °C	105 °C	Solder	Dual		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	42 84	Copper Alloy	Dual Edge Non Specified	2	0.156 in	0.054 in	0.07 in	Black	Panel Mount Through Hole	Cantilever	Female	1 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 356-042-420-107	Tin	-40 °C	105 °C	Solder	Dual		Flush Mount M3 Threaded Insert Top Opening		42 84	Copper Alloy	Dual Edge Non Specified	2	0.156 in	0.054 in	0.07 in	Black	Panel Mount Through Hole	Cantilever	Female	1 rows	Polyester Thermoplastic
EDAC Inc. 356-042-421-108	Tin	-40 °C	105 °C	Solder	Dual		4-40 Flush Mount Threaded Insert Top Opening		42 84	Copper Alloy	Dual Edge Non Specified	2	0.156 in	0.054 in	0.07 in	Black	Panel Mount Through Hole	Cantilever	Female	1 rows	Polyester Thermoplastic
EDAC Inc. 356-042-521-107	Gold	-40 °C	105 °C	Solder	Dual		Flush Mount M3 Threaded Insert Top Opening	10 Ąin	42 84	Copper Alloy	Dual Edge Non Specified	2	0.156 in	0.054 in	0.07 in	Black	Panel Mount Through Hole	Cantilever	Female	1 rows	Polyester Thermoplastic
EDAC Inc. 356-042-500-168	Gold	-40 °C	105 °C	Solder Eyelet(s)	Dual		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	42 84	Copper Alloy	Dual Edge Non Specified	2	0.156 in	0.054 in	0.07 in	Black	Panel Mount	Cantilever	Female	1 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 356-042-421-158	Tin	-40 °C	105 °C	Solder	Dual		4-40 Flush Mount Threaded Insert Top Opening		42 84	Copper Alloy	Dual Edge Non Specified	2	0.156 in	0.054 in	0.07 in	Black	Panel Mount Through Hole	Cantilever	Female	1 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 356-042-521-112	Gold	-40 °C	105 °C	Solder	Dual	0.128 in	Flush Mount Side Opening Unthreaded	10 Ąin	42 84	Copper Alloy	Dual Edge Non Specified	2	0.156 in	0.054 in	0.07 in	Black	Panel Mount Through Hole	Cantilever	Female	1 rows	Polyester Thermoplastic
