800-1603-2-SJT0-BL-00200

Obsolete

CnC Tech, LLC

CABLE ASSEMBLY 2M C13 3 POS F 16AWG

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CABLE ASSEMBLY 2M C13 3 POS F 16AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.49

General part information

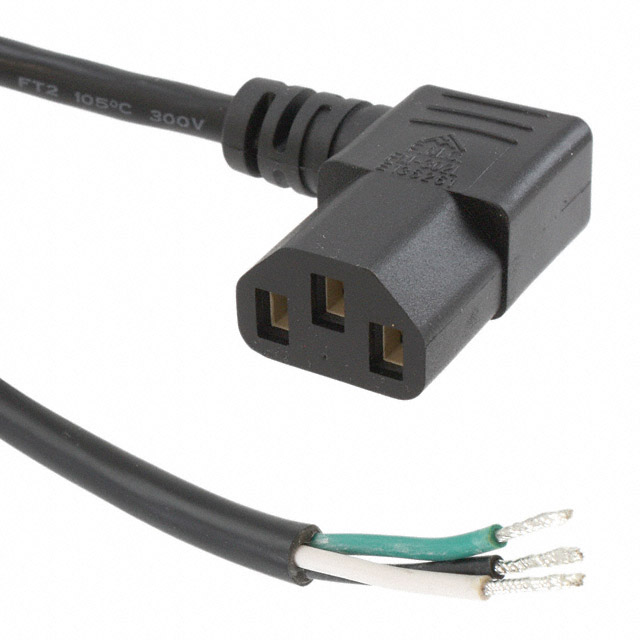

6.56' (2.00m) Power Cord Black IEC 320-C13, Right Angle To Cable SJT

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	800-1603-2-SJT0-BL-00200	800-1603 Series

1st Connector	Right Angle, IEC 320-C13	Right Angle, IEC 320-C13
2nd Connector	Cable	Cable
Approval Agency Marking	CSA, UL	CSA, UL, cUL
Approved Countries	United States, Canada	United States, Canada
Color	Black	Black
Cord Type	SJT	SJT
Current Rating (Amps)	13 A	13 A
Length [x]	2 m	1 - 500 m
Length [x]	6.56 ft	1.64 - 6.56 ft
Number of Conductors	3	3
Operating Temperature	105 C	60 - 105 C
Shielding	Unshielded	Unshielded, Shielded
Style	Female Sockets (Slots) to Leads	Female Sockets (Slots) to Leads
Voltage Rating	250 VDC	250 VDC
Wire Gauge	16 AWG	16 AWG

CORD 16AWG IEC320 RA - CBL 3.28'

Part	Cord Type	1st Connector	Color	Approved Countries	2nd Connector	Voltage Rating	Style	Operating Temperature	Shielding	Approval Agency Marking	Wire Gauge	Number of Conductors	Length [x]	Length [x]	Current Rating (Amps)
CnC Tech, LLC 800-1603-2-SJT0-BL-00100	SJT	IEC 320-C13, Right Angle	Black	Canada, United States	Cable	250 VDC	Female Sockets (Slots) to Leads	105 C	Unshielded	CSA, UL	16 AWG	3	1 m	3.28 ft	13 A
CnC Tech, LLC 800-1603-2-SJT0-BL-00200-1	SJT	IEC 320-C13, Right Angle	Black	Canada, United States	Cable	250 VDC	Female Sockets (Slots) to Leads	105 C	Unshielded	cUL, UL	16 AWG	3	2 m	6.56 ft	13 A
CnC Tech, LLC 800-1603-0-SJT0-BL-00100	SJT	IEC 320-C13, Right Angle	Black	Canada, United States	Cable	250 VDC	Female Sockets (Slots) to Leads	60 °C	Shielded	CSA, UL	16 AWG	3	1 m	3.28 ft
CnC Tech, LLC 800-1603-2-SJT0-BL-00100-1	SJT	IEC 320-C13, Right Angle	Black	Canada, United States	Cable	250 VDC	Female Sockets (Slots) to Leads	105 C	Unshielded	cUL, UL	16 AWG	3	1 m	3.28 ft	13 A
CnC Tech, LLC 800-1603-2-SJT0-BL-00200	SJT	IEC 320-C13, Right Angle	Black	Canada, United States	Cable	250 VDC	Female Sockets (Slots) to Leads	105 C	Unshielded	CSA, UL	16 AWG	3	2 m	6.56 ft	13 A
CnC Tech, LLC 800-1603-2-SJT0-BL-00050-1	SJT	IEC 320-C13, Right Angle	Black	Canada, United States	Cable	250 VDC	Female Sockets (Slots) to Leads	105 C	Unshielded	cUL, UL	16 AWG	3	500 mm	1.64 ft	13 A
