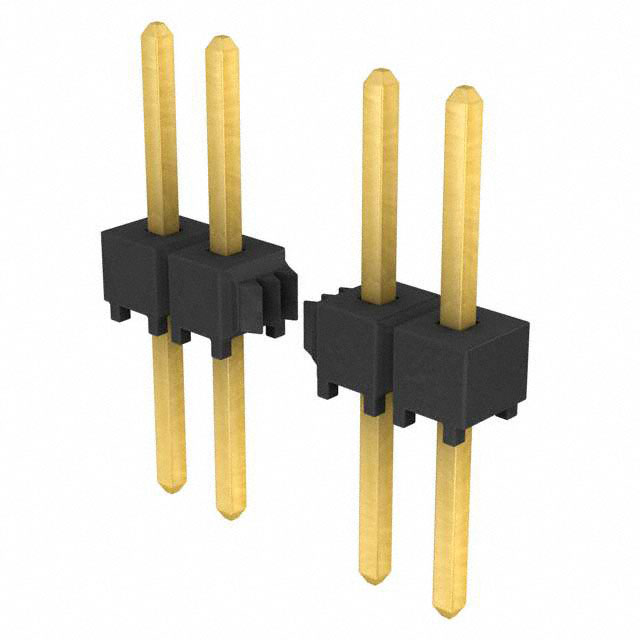

TSW-147-26-G-S

Active

Samtec Inc.

CONN HEADER VERT 47POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HTSW, TSW Series Datasheet

TSW-147-26-G-S

Active

Samtec Inc.

CONN HEADER VERT 47POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet HTSW, TSW Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-147-26-G-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.58 mm
Overall Contact Length	0.456 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSW-147 Series

Part	Contact Finish - Mating	Mounting Type	Shrouding	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Fastening Type	Number of Positions Loaded	Connector Type	Number of Rows	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Insulation Height [z]	Insulation Height	Termination	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Insulation Material	Contact Length - Post	Contact Length - Post	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Insulation Height	Contact Length - Post [x]	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSW-147-08-L-D-RA	Gold	Through Hole Right Angle	Unshrouded	Male Pin	0.1 in	2.54 mm	10 çin	0.25 çm	Black	Push-Pull	All	Header	2	UL94 V-0	0.23 in	5.84 mm	Tin	0.219 in	5.56 mm	Solder	Phosphor Bronze	2.54 mm	0.1 in	94	Polybutylene Terephthalate (PBT)	0.09 "	2.29 mm	Board to Board Cable	-55 °C	125 °C	Square
Samtec Inc. TSW-147-26-S-S	Gold	Through Hole	Unshrouded	Male Pin	0.1 in	2.54 mm	30 Áin	0.76 Ám	Black	Push-Pull	All	Header	1	UL94 V-0	0.23 in	5.84 mm	Tin		2.54 mm	Solder	Phosphor Bronze				Polybutylene Terephthalate (PBT)		3.2 mm	Board to Board Cable	-55 °C	125 °C	Square	0.126 in	11.58 mm	0.456 in	0.1 in
Samtec Inc. TSW-147-23-L-D	Gold	Through Hole	Unshrouded	Male Pin	0.1 in	2.54 mm	10 çin	0.25 çm	Black	Push-Pull	All	Header	2	UL94 V-0	0.23 in	5.84 mm	Tin		2.54 mm	Solder	Phosphor Bronze	2.54 mm	0.1 in	94	Polybutylene Terephthalate (PBT)	0.115 in	2.92 mm	Board to Board Cable	-55 °C	125 °C	Square		11.3 mm	0.445 "	0.1 in
Samtec Inc. TSW-147-08-L-S	Gold	Through Hole	Unshrouded	Male Pin	0.1 in	2.54 mm	10 çin	0.25 çm	Black	Push-Pull	All	Header	1	UL94 V-0	0.23 in	5.84 mm	Tin		2.54 mm	Solder	Phosphor Bronze				Polybutylene Terephthalate (PBT)			Board to Board Cable	-55 °C	125 °C	Square	0.2 in	13.46 mm	0.53 in	0.1 in	5.08 mm
Samtec Inc. TSW-147-14-T-S		Through Hole	Unshrouded	Male Pin	0.1 in	2.54 mm			Black	Push-Pull	All	Header	1	UL94 V-0		8.13 mm	Tin		2.54 mm	Solder	Phosphor Bronze				Polybutylene Terephthalate (PBT)		2.79 mm	Board to Board Cable	-55 °C	105 ░C	Square	0.11 in	13.46 mm	0.53 in	0.1 in		0.32 in
Samtec Inc. TSW-147-07-G-D-LL	Gold	Through Hole	Unshrouded	Male Pin	0.1 in	2.54 mm	10 çin	0.25 çm	Black	Push-Pull	All	Header	2	UL94 V-0	0.23 in	5.84 mm	Gold		2.54 mm	Kinked Pin Solder	Phosphor Bronze	2.54 mm	0.1 in	94	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Board to Board Cable	-55 °C	125 °C	Square		10.92 mm	0.43 in	0.1 in			3 µin	0.076 µm
Samtec Inc. TSW-147-14-G-D	Gold	Through Hole	Unshrouded	Male Pin	0.1 in	2.54 mm	10 çin	0.25 çm	Black	Push-Pull	All	Header	2	UL94 V-0		8.13 mm	Gold		2.54 mm	Solder	Phosphor Bronze	2.54 mm	0.1 in	94	Polybutylene Terephthalate (PBT)		2.79 mm	Board to Board Cable	-55 °C	125 °C	Square	0.11 in	13.46 mm	0.53 in	0.1 in		0.32 in	3 µin	0.076 µm
Samtec Inc. TSW-147-26-G-S	Gold	Through Hole	Unshrouded	Male Pin	0.1 in	2.54 mm	10 çin	0.25 çm	Black	Push-Pull	All	Header	1	UL94 V-0	0.23 in	5.84 mm	Gold		2.54 mm	Solder	Phosphor Bronze				Polybutylene Terephthalate (PBT)		3.2 mm	Board to Board Cable	-55 °C	125 °C	Square	0.126 in	11.58 mm	0.456 in	0.1 in			3 µin	0.076 µm
Samtec Inc. TSW-147-23-G-D	Gold	Through Hole	Unshrouded	Male Pin	0.1 in	2.54 mm	10 çin	0.25 çm	Black	Push-Pull	All	Header	2	UL94 V-0	0.23 in	5.84 mm	Gold		2.54 mm	Solder	Phosphor Bronze	2.54 mm	0.1 in	94	Polybutylene Terephthalate (PBT)	0.115 in	2.92 mm	Board to Board Cable	-55 °C	125 °C	Square		11.3 mm	0.445 "	0.1 in			3 µin	0.076 µm
Samtec Inc. TSW-147-26-T-D		Through Hole	Unshrouded	Male Pin	0.1 in	2.54 mm			Black	Push-Pull	All	Header	2	UL94 V-0	0.23 in	5.84 mm	Tin		2.54 mm	Solder	Phosphor Bronze	2.54 mm	0.1 in	94	Polybutylene Terephthalate (PBT)		3.2 mm	Board to Board Cable	-55 °C	105 ░C	Square	0.126 in	11.58 mm	0.456 in	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.52
		10	$ 5.89
		100	$ 5.16
		500	$ 4.34
		1000	$ 3.80

Description

General part information

TSW-147 Series

Connector Header Through Hole 47 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

HTSW, TSW Series Datasheet
