TMB-E2FS-1ST

Active

CarlisleIT

SMA(F)STR,EL,SMT,SOLDER

Search across all available documentation for this part.

Active

CarlisleIT

SMA(F)STR,EL,SMT,SOLDER

Technical Specifications

Parameters and characteristics for this part

SMA(F)STR,EL,SMT,SOLDER

Part	Shield Termination	Connector Style	Connector Type	Insertion Loss	Housing Color	Mounting Type	Contact Termination	Mating Cycles	Impedance	Frequency - Max [Max]	Number of Ports	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]
CarlisleIT TMB-E2FS-1ST	Solder	SMA	Female Socket, Jack	0.31 dB	Silver	Board Edge, End Launch	Solder	500	50 Ohms	26.5 GHz	1	170 V	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 46.21

General part information

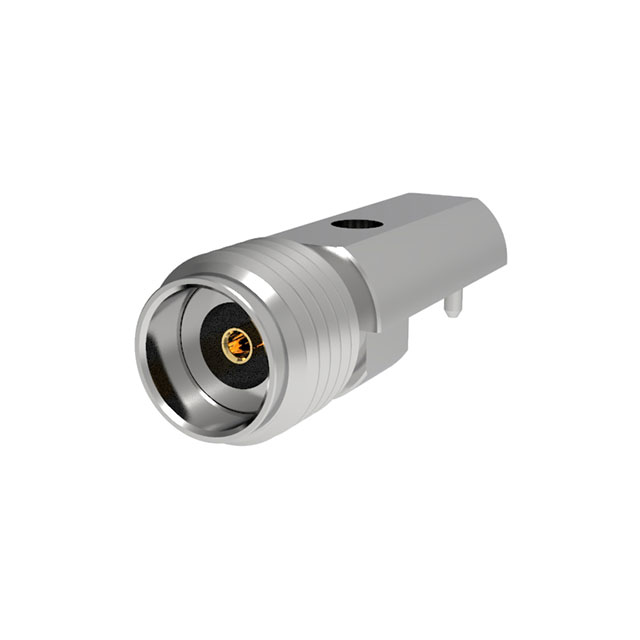

SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
