IPA600N25NM3SXKSA1
ActiveMOSFET, N-CH, 250V, 15A, TO-220FP ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
IPA600N25NM3SXKSA1
ActiveMOSFET, N-CH, 250V, 15A, TO-220FP ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IPA600N25NM3SXKSA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 15 A |
| Drain to Source Voltage (Vdss) | 250 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 2300 pF |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |

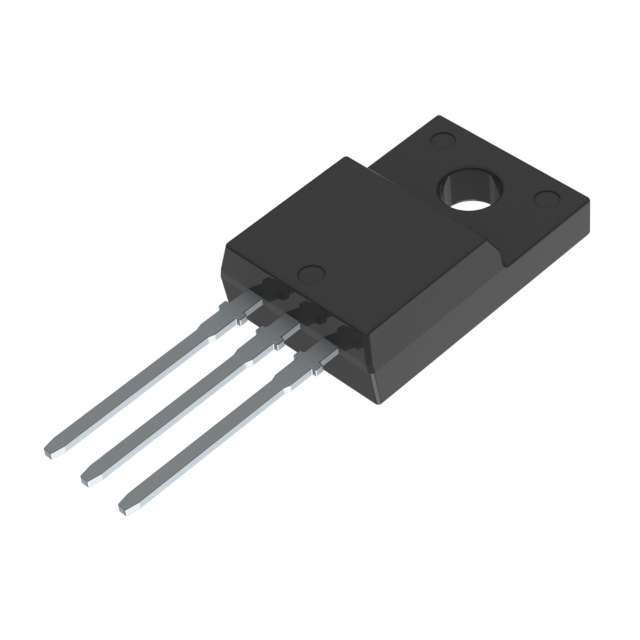

| Package / Case | TO-220-3 Full Pack |
| Power Dissipation (Max) | 38 W |
| Rds On (Max) @ Id, Vgs | 60 mOhm |
| Supplier Device Package | PG-TO220 Full Pack |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IPA600 Series
The OptiMOS™ 3 MOSFET 250V in TO-220 FullPAK package (IPA600N25NM3S) meets the requirements for improved system efficiency and lowers system costs. Infineon’sOptiMOS™ power MOSFETIPA600N25NM3S features low RDS(on)of 60mOhm. With its increased power density and improved efficiency, the TO-220 FullPAK portfolio extension is the excellent solution for synchronous rectification. It is optimized for TV power supply, desktop, adapter and gaming applications.
