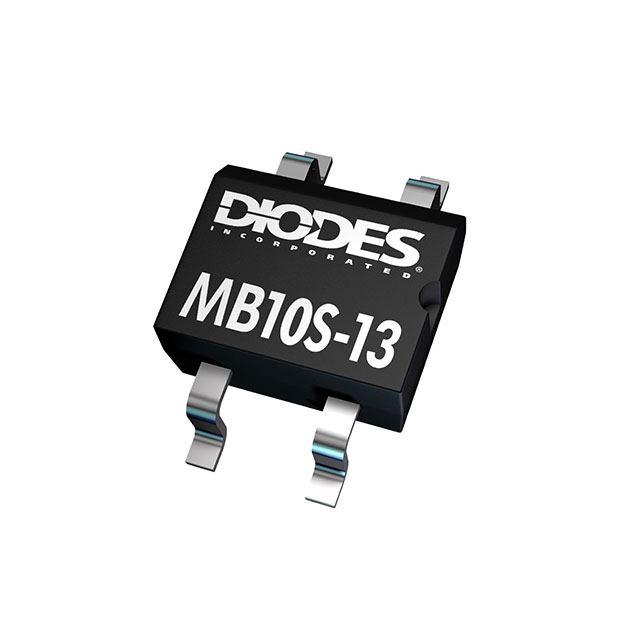

MB10S-13 - MB10S-13

MB10S-13

Active
Diodes Inc

0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetRecommended Soldering Techniques+2
MB10S-13 - MB10S-13

MB10S-13

Active
Diodes Inc

0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Deep-Dive with AI

DocumentsDatasheetRecommended Soldering Techniques+2

Technical Specifications

Parameters and characteristics for this part

SpecificationMB10S-13
Current - Average Rectified (Io)800 mA
Current - Reverse Leakage @ Vr5 µA
Diode TypeSingle Phase
Mounting TypeSurface Mount
Operating Temperature [Max]150 °C
Operating Temperature [Min]-55 °C
Package / Case4-BESOP, TO-269AA
Supplier Device PackageMBS
TechnologyStandard
Voltage - Peak Reverse (Max) [Max]1000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.42
10$ 0.26
100$ 0.16
500$ 0.12
1000$ 0.11
Digi-Reel® 1$ 0.42
10$ 0.26
100$ 0.16
500$ 0.12
1000$ 0.11
Tape & Reel (TR) 3000$ 0.09
6000$ 0.08
9000$ 0.08
15000$ 0.07
21000$ 0.07
30000$ 0.07
75000$ 0.06

Description

General part information

MB10S Series

0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
