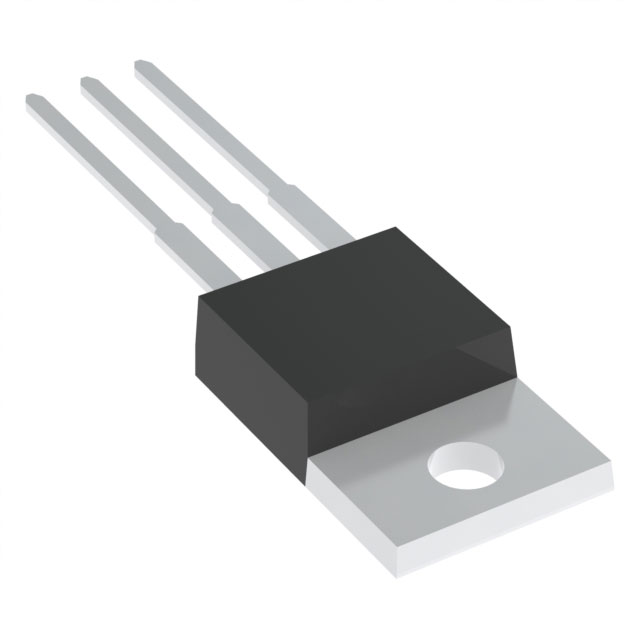

T16M35T600B

Active

Diodes Inc

TRIAC, 600V V(DRM), 16A I(T)RMS, TO-220AB, LEAD FREE, PLASTIC PACKAGE-3

Search across all available documentation for this part.

Active

Diodes Inc

TRIAC, 600V V(DRM), 16A I(T)RMS, TO-220AB, LEAD FREE, PLASTIC PACKAGE-3

Technical Specifications

Parameters and characteristics for this part

Specification	T16M35T600B

Current - Gate Trigger (Igt) (Max) [Max]	35 mA
Current - Hold (Ih) (Max) [Max]	50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	150 A
Current - On State (It (RMS)) (Max)	16 A
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	TO-220-3
SCR Type	Standard Recovery
Supplier Device Package	TO-220AB
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	600 V
Voltage - On State (Vtm) (Max) [Max]	1.6 V

Triacs Silicon Bidirectional Thyristors

Part	Package / Case	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Gate Trigger (Igt) (Max) [Max]	Supplier Device Package	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	SCR Type	Voltage - On State (Vtm) (Max) [Max]	Current - On State (It (RMS)) (Max)
Diodes Inc T16M35T600B	TO-220-3	600 V	150 A	35 mA	TO-220AB	50 mA	1.5 V	Through Hole	-40 °C	125 ¯C	Standard Recovery	1.6 V	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Triacs Silicon Bidirectional Thyristors
