1274 SL002

Active

ALPHA WIRE

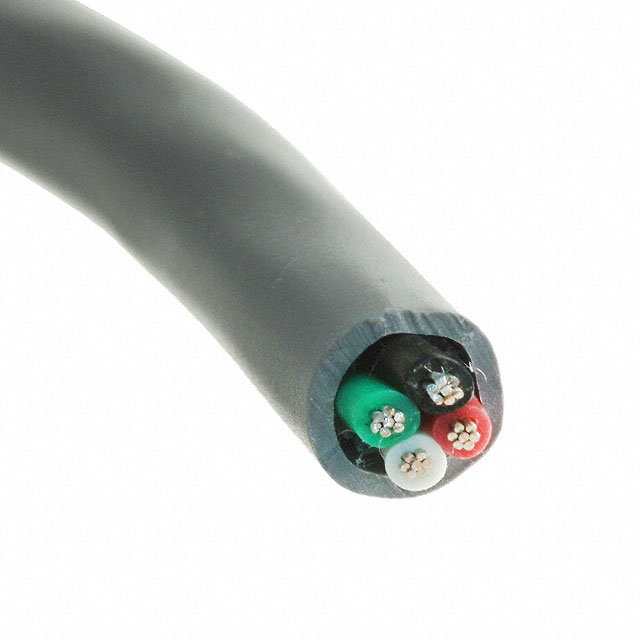

CABLE 4COND 14AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 14AWG SLATE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1274 SL002	1274 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19 Strands	19 Strands
Conductor Strand [diameter]	0.0147 in	0.0147 in
Jacket (Insulation) Diameter [diameter]	0.503 in	0.503 in
Jacket (Insulation) Diameter [diameter]	12.78 mm	12.78 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm	1.194 mm
Jacket (Insulation) Thickness	0.047 in	0.047 in
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Number of Conductors	4	4
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	13.5 AWG	13.5 AWG

CABLE 4COND 14AWG SLATE

Part	Conductor Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Wire Gauge	Length	Length	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Material	Conductor Insulation	Jacket Color	Conductor Strand [diameter]	Conductor Strand [custom]	Length [x]	Length [x]
ALPHA WIRE 1274 SL001	Copper, Tinned	Communication, Control	0.503 in	12.78 mm	-20 C	80 C	600 V	13.5 AWG	1000 ft	304.8 m	4	1.194 mm	0.047 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Slate	0.0147 in	19 Strands
ALPHA WIRE 1274 SL002	Copper, Tinned	Communication, Control	0.503 in	12.78 mm	-20 C	80 C	600 V	13.5 AWG			4	1.194 mm	0.047 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Slate	0.0147 in	19 Strands	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.86

General part information

4 Conductor Multi-Conductor Cable Slate 14 AWG 500.0' (152.4m)
