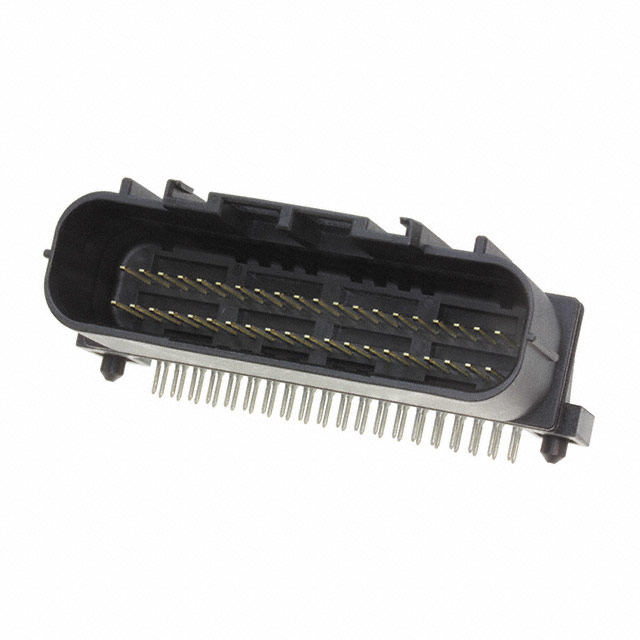

MX23A40NF1

Active

JAE Electronics

CONN HEADER R/A 40POS 2.5MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER R/A 40POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX23A40NF1

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Waterproof
Insulation Color	Black
Insulation Height	18.3 mm
Insulation Height	0.72 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Row Spacing - Mating	4.4 mm
Row Spacing - Mating	0.173 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Features	Applications	Contact Shape	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Ingress Protection	Current Rating (Amps)	Insulation Height	Insulation Height	Shrouding	Number of Positions	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Color	Termination	Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Fastening Type	Number of Rows	Connector Type	Contact Type	Contact Material
JAE Electronics MX23A40NF1	Board Guide	Automotive	Square	Polybutylene Terephthalate (PBT) Glass Filled	4.4 mm	0.173 in	Waterproof	3 A	18.3 mm	0.72 in	Shrouded - 4 Wall	40	Through Hole Right Angle	0.122 "	3.1 mm	Black	Solder	Board to Cable/Wire	125 °C	-40 °C	Tin	2.5 mm	0.098 in	All	Latch Holder	2	Header	Male Pin	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 40 position 0.098" (2.50mm)
