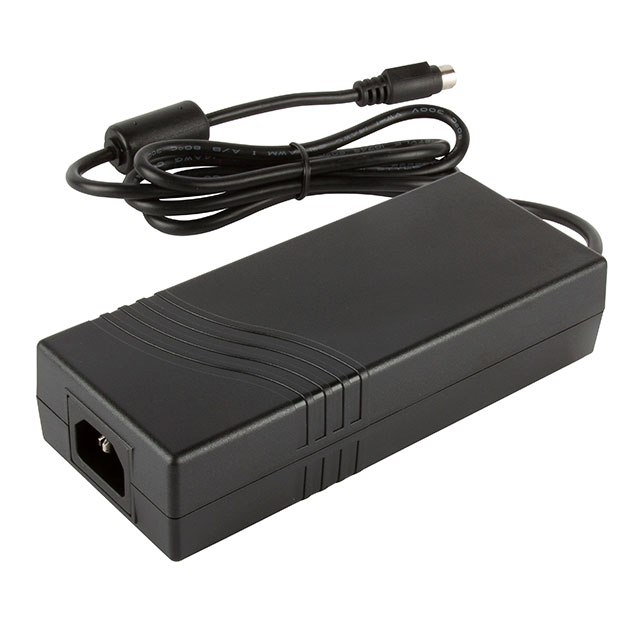

VES120PS12

Active

XP Power

AC/DC POWER SUPPLY, 1 OUTPUT, 120 W, 12 V, 10 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

VES120PS12

Active

XP Power

AC/DC POWER SUPPLY, 1 OUTPUT, 120 W, 12 V, 10 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 69.61
		5	$ 67.52
		10	$ 65.43
		25	$ 62.65
		100	$ 58.47
Newark	Each	1	$ 69.61
		5	$ 67.52
		10	$ 65.43
		25	$ 62.65
		100	$ 58.47

Description

General part information

VES120 Series

VES120 series is an energy efficiency level VI and CoC tier 2 desktop/external AC-DC power supply is designed for high volume/low cost applications. With class I construction the VES120 are fitted with an IEC320-C14 inlet. Safety approvals are UL60950-1, UL62368-1, EN60950-1, EN62368-1, IEC60950-1, IEC62368-1, AU/NZ 60950.1.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Certificate of Conformity EN

Datasheet

Specification	VES120PS12	VES120 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	UL, GS, CCC, CB	UL, GS, CCC, CB
Cord Length	1.2 m	1.2 m
Cord Length	47.2 in	47.2 in
Current - Output (Max) [Max]	10 A	5 - 10 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Desktop (Class I)	Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C14
Input Type	Cord	Cord
No Load Power Consumption [Max]	150 mW	150 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	4 Pin	4 Pin
Output Connector	Power DIN	Power DIN
Power (Watts)	120 W	120 W
Region Utilized	International	International
Size / Dimension [x]	168 mm	168 mm
Size / Dimension [x]	6.61 in	6.61 in
Size / Dimension [y]	71 mm	71 mm
Size / Dimension [y]	2.8 in	2.8 in
Size / Dimension [z]	1.48 in	1.48 in
Size / Dimension [z]	37.2 mm	37.2 mm
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	12 V	12 - 24 V
Weight	589.7 g	589.7 g
Weight	1.3 lbs	1.3 lbs

Part	Operating Temperature [Max]	Cord Length	Cord Length	Voltage - Output	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Weight	Weight	Efficiency	Current - Output (Max) [Max]	Power (Watts)	Approval Agency	Input Type	Region Utilized	Form	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Output Connector	No Load Power Consumption [Max]
XP Power VES120PS12	60 °C	1.2 m	47.2 in	12 V	ITE (Commercial)	1.48 in	71 mm	2.8 in	168 mm	6.61 in	37.2 mm	62368-1	589.7 g	1.3 lbs	CoC Tier 2, Level VI	10 A	120 W	CB, CCC, GS, UL	Cord	International	Desktop (Class I)	IEC 320-C14	90 VAC	264 VAC	4 Pin	Power DIN	150 mW
XP Power VES120PS19	60 °C	1.2 m	47.2 in	19 V	ITE (Commercial)	1.48 in	71 mm	2.8 in	168 mm	6.61 in	37.2 mm	62368-1	589.7 g	1.3 lbs	CoC Tier 2, Level VI	6.32 A	120 W	CB, CCC, GS, UL	Cord	International	Desktop (Class I)	IEC 320-C14	90 VAC	264 VAC	4 Pin	Power DIN	150 mW
XP Power VES120PS24	60 °C	1.2 m	47.2 in	24 V	ITE (Commercial)	1.48 in	71 mm	2.8 in	168 mm	6.61 in	37.2 mm	62368-1	589.7 g	1.3 lbs	CoC Tier 2, Level VI	5 A	120 W	CB, CCC, GS, UL	Cord	International	Desktop (Class I)	IEC 320-C14	90 VAC	264 VAC	4 Pin	Power DIN	150 mW
