9001-1033-002

Active

Radiall USA, Inc.

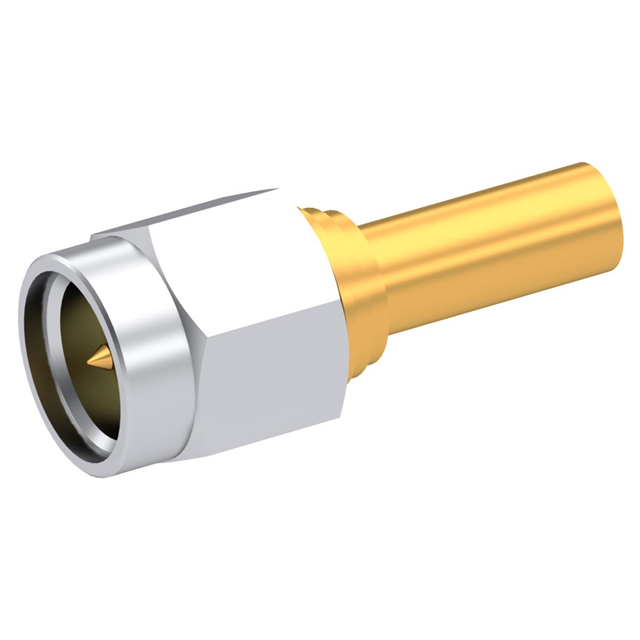

SMA / STRAIGHT PLUG MALE SOLDER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT PLUG MALE SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	9001-1033-002

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Shield Termination	Number of Ports	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Cable Group	Cable Group	Impedance	Dielectric Material	Frequency - Max [Max]	Center Contact Material	Body Finish	Connector Type	Mating Cycles	Body Material	Mounting Type	Center Contact Plating	Voltage Rating	Connector Style
Radiall USA, Inc. 9001-1033-001	Solder	1	Gold	-65 ░C	165 °C	Solder	142 223	RG-55	50 Ohms	Polytetrafluoroethylene (PTFE)	12.4 GHz	Beryllium Copper	Gold	Male Pin Plug	500	Stainless Steel	Free Hanging (In-Line)	Gold	335 V	SMA
Radiall USA, Inc. 9001-1033-002	Crimp	1	Gold	-65 ░C	125 °C	Crimp	196	RG-178	50 Ohms	Polytetrafluoroethylene (PTFE)	12.4 GHz	Beryllium Copper	Gold	Male Pin Plug	500	Stainless Steel	Free Hanging (In-Line)	Gold	335 V	SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.82

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
