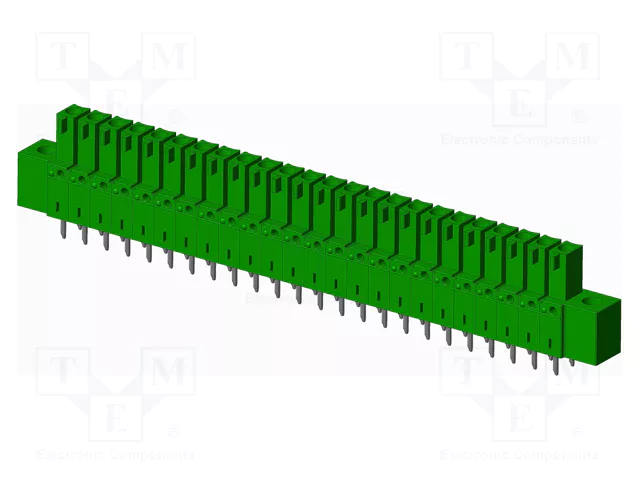

Specification	V72432510000G

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Contact Tail Length	0.134 in
Current - UL	8 A
Features	Mating Flange
Header Orientation	Right Angle
Header Orientation Angle	90 °
Housing Material	Thermoplastic
Insulation Height	0.268 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	24 pos
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	0.15 in
Positions Per Level	24
Termination Style	Solder
Type	Header, Female Sockets
Voltage - UL	300 V

V724 Series

Part	Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - UL	Termination Style	Header Orientation	Positions Per Level	Number of Positions	Color	Mounting Type	Contact Mating Finish	Pitch	Features	Current - UL	Number of Levels	Contact Tail Length	Housing Material	Material Flammability Rating	Contact Material	Insulation Height	Header Orientation Angle
McGill Microwave Systems V72412500000G	Female Sockets Header	-40 °C	115 °C	300 V	Solder	Vertical	24	24 pos	Green	Through Hole	Tin	0.138 in	Mating Flange	4 A	1	0.134 in	Thermoplastic	UL94 V-0	Phosphor Bronze	0.571 in
McGill Microwave Systems V72432500000G	Female Sockets Header	-40 °C	115 °C	300 V	Solder	Vertical	24	24 pos	Green	Through Hole	Tin	0.15 in	Mating Flange	8 A	1	0.134 in	Thermoplastic	UL94 V-0	Phosphor Bronze	0.571 in
McGill Microwave Systems V72452510000G	Female Sockets Header	-40 °C	115 °C	300 V	Solder	Right Angle	24	24 pos	Green	Through Hole	Tin	5.08 mm	Mating Flange Retention Latches	20 A	1	0.138 in	Thermoplastic	UL94 V-0	Copper		90 °
McGill Microwave Systems V72411510000G	Female Sockets Header	-40 °C	115 °C	300 V	Solder	Right Angle	24	24 pos	Green	Through Hole	Tin	0.138 in		4 A	1	0.134 in	Thermoplastic	UL94 V-0	Phosphor Bronze	0.26 in	90 °
McGill Microwave Systems V72432510000G	Female Sockets Header	-40 °C	115 °C	300 V	Solder	Right Angle	24	24 pos	Green	Through Hole	Tin	0.15 in	Mating Flange	8 A	1	0.134 in	Thermoplastic	UL94 V-0	Phosphor Bronze	0.268 in	90 °
McGill Microwave Systems V72431510000G	Female Sockets Header	-40 °C	115 °C	300 V	Solder	Right Angle	24	24 pos	Green	Through Hole	Tin	0.15 in		8 A	1	0.134 in	Thermoplastic	UL94 V-0	Phosphor Bronze	0.26 in	90 °
McGill Microwave Systems V72472500000G	Female Sockets Header	-40 °C	115 °C	300 V	Solder	Vertical	24	24 pos	Green	Through Hole	Tin	0.197 in	Mating Flange Retention Latches	10 A	1	0.138 in	Thermoplastic	UL94 V-0	Phosphor Bronze	0.748 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

V72432510000G | Datasheet
