627-9W4-622-2N1

Active

EDAC Inc.

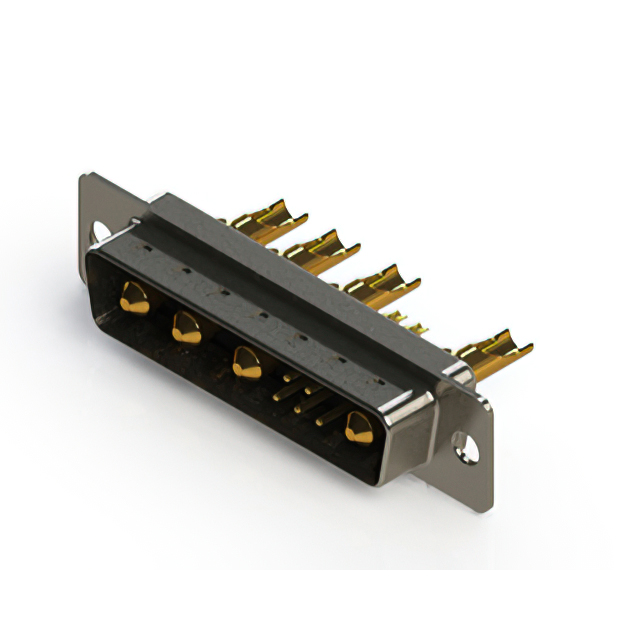

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DB-9W4, PLUG, 9 CONTACTS, 5 SIGNAL, 4 POWER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-9W4-622-2N1

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DB-9W4, PLUG, 9 CONTACTS, 5 SIGNAL, 4 POWER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-9W4-622-2N1

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 9W4
Voltage Rating	125 VDC

627-9W4 Series

...

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Voltage Rating	Connector Type	Contact Type	Flange Feature	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Dielectric Material	Termination	Contact Material	Contact Finish	Shell Size, Connector Layout	Connector Style	Color	Material Flammability Rating	Shell Material, Finish	Current Rating (Amps)	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)
EDAC Inc. 627-9W4-624-5NE	2	0.76 Ám	30 Áin	4 5	125 VDC	Male Pins Plug	Signal and Power	M3	Board Lock Grounding Indents Shielded	-55 °C	125 °C	Panel Mount Through Hole	Polyester Thermoplastic	Solder	Copper Alloy	Gold	3 (DB B) - 9W4	Combo D-Sub	Black	UL94 V-0	Nickel Plated Steel
EDAC Inc. 627-9W4-224-1N5	2			9	125 VDC	Male Pins Plug	Signal and Power	4-40 Board Side	Board Lock Grounding Indents Shielded	-55 °C	125 °C	Through Hole	Polyester Thermoplastic	Solder	Copper Alloy	Gold	3 (DB B) - 9W4	Combo D-Sub	Black	UL94 V-0	Nickel Plated Steel	10A 5A	Flash	4	5
EDAC Inc. 627-9W4-622-2N1	2	0.76 Ám	30 Áin	9	125 VDC	Male Pins Plug	Signal and Power	Housing/Shell (Unthreaded)	Grounding Indents Shielded	-55 °C	125 °C	Free Hanging (In-Line)	Polyester Thermoplastic		Copper Alloy	Gold	3 (DB B) - 9W4	Combo D-Sub	Black	UL94 V-0	Nickel Plated Steel			4	5	5 A 20 A
EDAC Inc. 627-9W4-622-1T1	2	0.76 Ám	30 Áin	9	125 VDC	Male Pins Plug	Signal and Power	Housing/Shell (Unthreaded)	Grounding Indents Shielded	-55 °C	125 °C	Free Hanging (In-Line)	Polyester Thermoplastic		Copper Alloy	Gold	3 (DB B) - 9W4	Combo D-Sub	Black	UL94 V-0		10A 5A		4	5
EDAC Inc. 627-9W4-222-5T2	2			4 5	125 VDC	Male Pins Plug	Signal and Power	4-40 Board Side	Grounding Indents Shielded	-55 °C	125 °C	Free Hanging (In-Line)	Polyester Thermoplastic		Copper Alloy	Gold	3 (DB B) - 9W4	Combo D-Sub	Black	UL94 V-0			Flash
EDAC Inc. 627-9W4-222-5T1	2			4 5	125 VDC	Male Pins Plug	Signal and Power	Housing/Shell (Unthreaded)	Grounding Indents Shielded	-55 °C	125 °C	Free Hanging (In-Line)	Polyester Thermoplastic		Copper Alloy	Gold	3 (DB B) - 9W4	Combo D-Sub	Black	UL94 V-0			Flash
EDAC Inc. 627-9W4-624-7NB	2	0.76 Ám	30 Áin	4 5	125 VDC	Male Pins Plug	Signal and Power	Board Side (M3)	Grounding Indents Shielded	-55 °C	125 °C	Panel Mount Through Hole	Polyester Thermoplastic	Solder	Copper Alloy	Gold	3 (DB B) - 9W4	Combo D-Sub	Black	UL94 V-0	Nickel Plated Steel
EDAC Inc. 627-9W4-224-1TA	2			9	125 VDC	Male Pins Plug	Signal and Power	Board Side (M3)	Grounding Indents Shielded	-55 °C	125 °C	Panel Mount Through Hole	Polyester Thermoplastic	Solder	Copper Alloy	Gold	3 (DB B) - 9W4	Combo D-Sub	Black	UL94 V-0		10A 5A	Flash	4	5
EDAC Inc. 627-9W4-224-1NA	2			9	125 VDC	Male Pins Plug	Signal and Power	Board Side (M3)	Grounding Indents Shielded	-55 °C	125 °C	Panel Mount Through Hole	Polyester Thermoplastic	Solder	Copper Alloy	Gold	3 (DB B) - 9W4	Combo D-Sub	Black	UL94 V-0	Nickel Plated Steel	10A 5A	Flash	4	5
EDAC Inc. 627-9W4-624-5TA	2	0.76 Ám	30 Áin	4 5	125 VDC	Male Pins Plug	Signal and Power	Board Side (M3)	Grounding Indents Shielded	-55 °C	125 °C	Panel Mount Through Hole	Polyester Thermoplastic	Solder	Copper Alloy	Gold	3 (DB B) - 9W4	Combo D-Sub	Black	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 18.91
Newark	Each	1	$ 23.48
		250	$ 21.53
		500	$ 19.87
		1000	$ 19.14
		5000	$ 16.92

Description

General part information

627-9W4 Series

9 (5 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector

Documents

Technical documentation and resources
