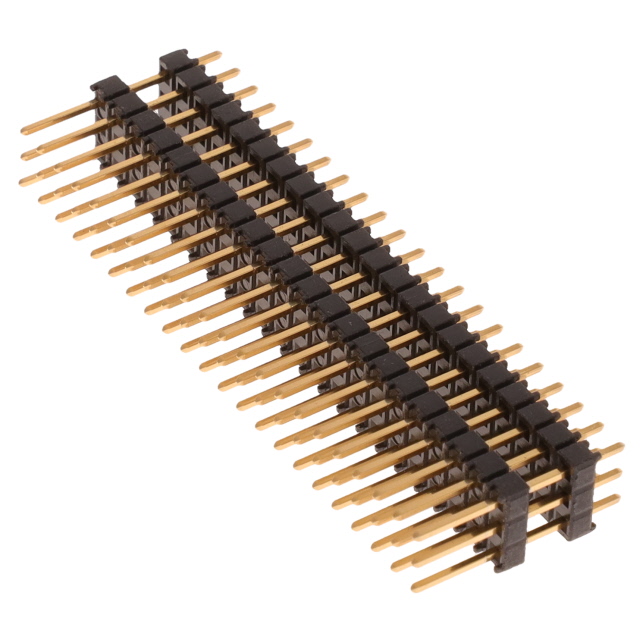

DW-22-09-G-T-350

Active

Samtec Inc.

CONN HDR 66POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch Datasheet +1

DW-22-09-G-T-350

Active

Samtec Inc.

CONN HDR 66POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-22-09-G-T-350

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.73 in
Length - Overall Pin [x]	18.542 mm
Length - Post (Mating) [x]	0.27 in
Length - Post (Mating) [x]	6.858 mm
Length - Stack Height [x]	8.89 mm
Length - Stack Height [x]	0.35 in
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	66
Number of Rows	3
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

DW-22-09 Series

Part	Pitch [x]	Pitch [x]	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail [x]	Length - Tail [x]	Row Spacing [x]	Row Spacing	Termination	Number of Positions	Length - Stack Height [z]	Length - Stack Height [z]	Color	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)
Samtec Inc. DW-22-09-T-D-434	2.54 mm	0.1 in	Through Hole	0.73 in	18.542 mm	0.11 in	2.794 mm	0.1 in	2.54 mm	Solder	44	11.024 mm	0.434 in	Black	Tin	4.724 mm	0.186 in	2
Samtec Inc. DW-22-09-G-T-350	2.54 mm	0.1 in	Through Hole	0.73 in	18.542 mm	0.11 in	2.794 mm	0.1 in	2.54 mm	Solder	66			Black	Gold	6.858 mm	0.27 in	3	8.89 mm	0.35 in	0.25 Ám	10 Áin
Samtec Inc. DW-22-09-S-D-450	2.54 mm	0.1 in	Through Hole	0.73 in	18.542 mm	0.11 in	2.794 mm	0.1 in	2.54 mm	Solder	44	11.43 mm	0.45 in	Black	Gold	4.318 mm	0.17 in	2			0.76 µm	30 µin
Samtec Inc. DW-22-09-L-D-430	2.54 mm	0.1 in	Through Hole	0.73 in	18.542 mm	0.11 in	2.794 mm	0.1 in	2.54 mm	Solder	44			Black	Gold	4.826 mm	0.19 in	2	10.922 mm	0.43 in	0.25 Ám	10 Áin
Samtec Inc. DW-22-09-G-D-440	2.54 mm	0.1 in	Through Hole	0.73 in	18.542 mm	0.11 in	2.794 mm	0.1 in	2.54 mm	Solder	44			Black	Gold	4.597 mm	0.181 in	2			0.25 Ám	10 Áin
Samtec Inc. DW-22-09-L-D-415	2.54 mm	0.1 in	Through Hole	0.73 in	18.542 mm	0.11 in	2.794 mm	0.1 in	2.54 mm	Solder	44			Black	Gold	5.207 mm	0.205 in	2	10.541 mm	0.415 in	0.25 Ám	10 Áin
Samtec Inc. DW-22-09-T-D-430	2.54 mm	0.1 in	Through Hole	0.73 in	18.542 mm	0.11 in	2.794 mm	0.1 in	2.54 mm	Solder	44			Black	Tin	4.826 mm	0.19 in	2	10.922 mm	0.43 in
Samtec Inc. DW-22-09-F-S-483	2.54 mm	0.1 in	Through Hole	0.73 in	18.542 mm	0.11 in	2.794 mm			Solder	22 positions	12.268 mm	0.483 in	Black	Gold	3.48 mm	0.137 in	1			0.076 Ám	3 Áin
Samtec Inc. DW-22-09-T-D-450	2.54 mm	0.1 in	Through Hole	0.73 in	18.542 mm	0.11 in	2.794 mm	0.1 in	2.54 mm	Solder	44	11.43 mm	0.45 in	Black	Tin	4.318 mm	0.17 in	2
Samtec Inc. DW-22-09-G-D-495	2.54 mm	0.1 in	Through Hole	0.73 in	18.542 mm	0.11 in	2.794 mm	0.1 in	2.54 mm	Solder	44			Black	Gold	3.175 mm	0.125 in	2	12.573 mm	0.495 in	0.25 Ám	10 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.82
		10	$ 12.17
		100	$ 9.50
		500	$ 8.09
		1000	$ 7.58
