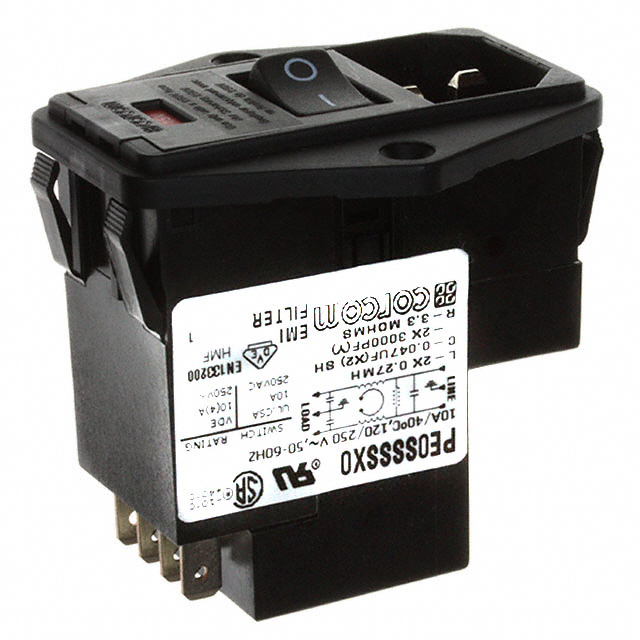

PE0SSSSX0

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	PE0SSSSX0

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Voltage Selector, Conversion Clip
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions	Variable Size
Panel Thickness [Max]	2.9 mm
Panel Thickness [Max]	0.114 in
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Switch Features	Switch On-Off
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Features	Approval Agency	Current Rating - Appliance Inlet	Switch Features	Voltage Rating - Appliance Inlet	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Filter Type	Accomodates a Fuse	Connector Style	Fuse Holder, Drawer	Termination	Termination	Termination	Current Rating - Filter	Connector Type	Mounting Type	Panel Cutout Dimensions
TE Connectivity Corcom Filters PE0SSSSX0	Conversion Clip, Voltage Selector	CSA, UL, VDE	10 A	Switch On-Off	120 VAC	2.9 mm	0.114 in	0.79 mm	0.031 "	Filtered (EMI, RFI) - Commercial		IEC 320-C14	Fuse Holder	0.187 "	4.7 mm	Quick Connect	10 A	Receptacle, Male Blades - Module	Flange, Panel Mount	Variable Size

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
