T1519162000-000
ActiveTE Connectivity AMP Connectors
H16A-ADS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T1519162000-000
ActiveTE Connectivity AMP Connectors
H16A-ADS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1519162000-000 | T151 Series |
|---|---|---|
| Connector Type | Base - Panel Mount | Base - Panel Mount |
| Features | Cover | Cover |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H16A | H16B, H10B, H10A, H16A |
| Size / Dimension [x] | 98.7 mm | 95.2 - 98.7 mm |
| Size / Dimension [x] | 3.886 " | 3.748 - 3.886 " |
| Size / Dimension [y] | 1.331 " | 1.331 - 1.799 " |
| Size / Dimension [y] | 33.8 mm | 33.8 - 45.7 mm |
| Size / Dimension [z] | 27 mm | 27 - 29.8 mm |
| Size / Dimension [z] | 1.063 " | 1.063 - 1.173 in |
| Style | Bottom Entry | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.69 | |
| 10 | $ 17.15 | |||
| 25 | $ 15.91 | |||
| 50 | $ 15.04 | |||
| 100 | $ 14.22 | |||
| 250 | $ 13.21 | |||
| 500 | $ 12.49 | |||
T151 Series
T1510163002-000
| Part | Style | Size | Lock Location | Housing Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Housing Color | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1510163002-000 | Bottom Entry | H16B | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | Base - Panel Mount | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | Cover | ||||||||
TE Connectivity AMP Connectors T1510102000-000 | Bottom Entry | H10B | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | Base - Panel Mount | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | Cover | ||||||||
TE Connectivity AMP Connectors T1510102100-000 | Bottom Entry | H10B | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | Base - Panel Mount | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | Cover | 95.2 mm | 1.799 " | 1.173 in | 3.748 " | 45.7 mm | 29.8 mm | Gray | Powder Coated |
TE Connectivity AMP Connectors T1519101000-000 | Bottom Entry | H10A | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | Base - Panel Mount | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | Cover | Gray | Powder Coated | ||||||
TE Connectivity AMP Connectors T1510162000-000 | Bottom Entry | H16B | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | Base - Panel Mount | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | Cover | ||||||||
TE Connectivity AMP Connectors T1519161000-000 | Bottom Entry | H16A | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | Base - Panel Mount | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | Cover | 98.7 mm | 1.331 " | 1.063 " | 3.886 " | 33.8 mm | 27 mm | Gray | Powder Coated |
TE Connectivity AMP Connectors T1519162000-000 | Bottom Entry | H16A | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | Base - Panel Mount | 125 °C | -40 °C | IP65 - Dust Tight, Water Resistant | Cover | 98.7 mm | 1.331 " | 1.063 " | 3.886 " | 33.8 mm | 27 mm | Gray | Powder Coated |
Description
General part information
T151 Series

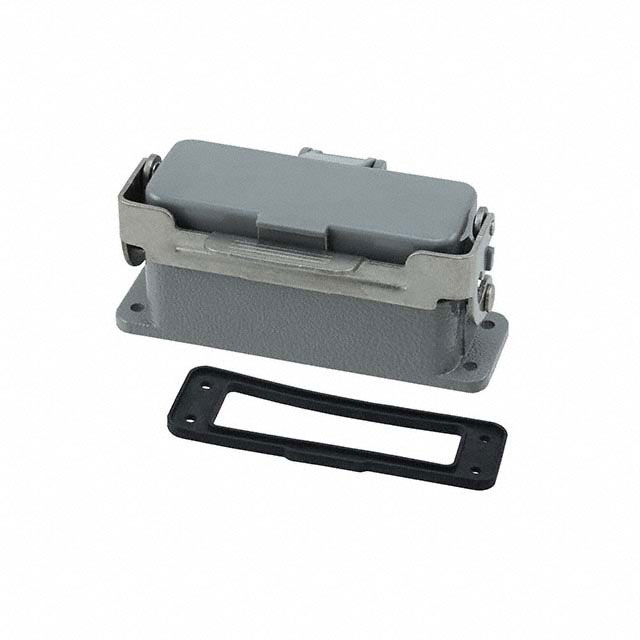

Base - Panel Mount Connector Bottom Entry H16A IP65 - Dust Tight, Water Resistant
