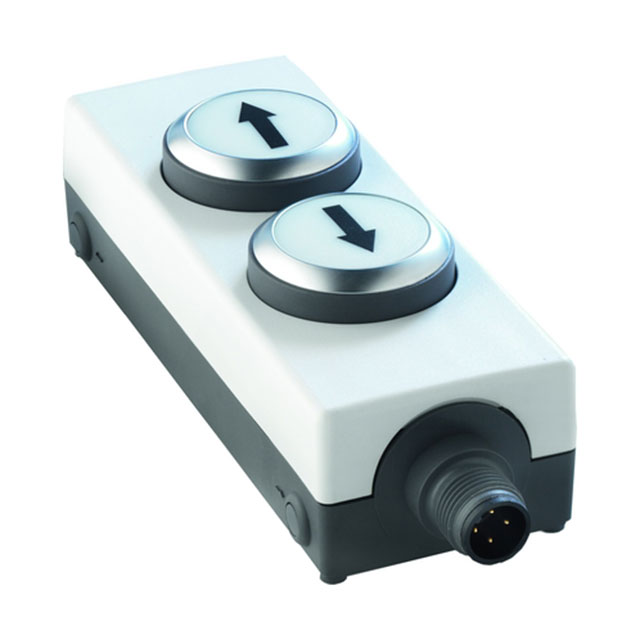

1.22.242.242/0000

Active

RAFI USA

SWITCH PUSHBUTTON 1NOX2 100MA

Search across all available documentation for this part.

Active

RAFI USA

SWITCH PUSHBUTTON 1NOX2 100MA

Technical Specifications

Parameters and characteristics for this part

Specification	1.22.242.242/0000

Actuator Marking	No Marking
Actuator Type	Button, Dual, Round
Circuit	SPST-NO x 2
Color - Actuator/Cap	White
Current Rating (Amps)	100 mA
Features	Control Box Enclosure
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Free Hanging
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	Connector
Type	Standard

Part	Type	Mounting Type	Switch Function	Color - Actuator/Cap	Features	Actuator Marking	Actuator Type	Circuit	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style
RAFI USA 1.22.242.242/0000	Standard	Free Hanging	Off-Mom	White	Control Box Enclosure	No Marking	Button Dual Round	SPST-NO x 2	IP65 - Dust Tight Water Resistant	70 °C	-25 °C	100 mA	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO x 2 Standard Free Hanging
