CC-03PMFS-QC800P
ActiveAmphenol LTW

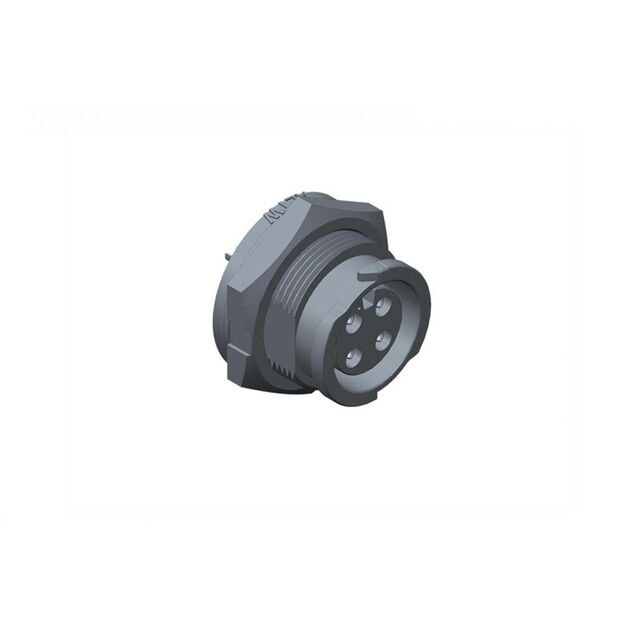

MIDDLE RECEPTACLE(FRONT)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC-03PMFS-QC800P
ActiveAmphenol LTW
MIDDLE RECEPTACLE(FRONT)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC-03PMFS-QC800P |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 20 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | C |
| Shielding | Unshielded |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.70 | |
| 10 | $ 6.67 | |||
| 25 | $ 6.02 | |||
| 50 | $ 5.58 | |||
| 100 | $ 5.19 | |||
| 250 | $ 4.72 | |||
| 500 | $ 4.40 | |||
| 1000 | $ 4.11 | |||
| 2500 | $ 3.83 | |||
Description
General part information
CC-03PMFS Series
3 Position Circular Connector Receptacle, Female Sockets Solder Cup
