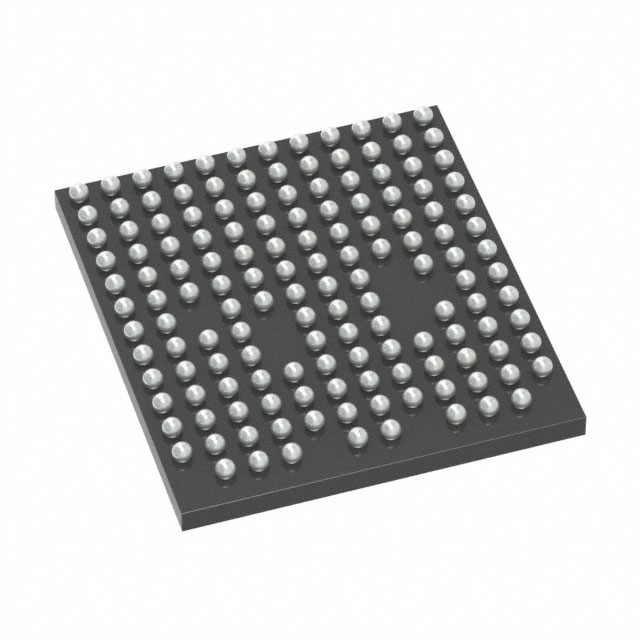

BCM89335L2CUBGT

Unknown

Infineon Technologies

IC RF TXRX+MCU BLE 145WLBGA

Search across all available documentation for this part.

Unknown

Infineon Technologies

IC RF TXRX+MCU BLE 145WLBGA

Technical Specifications

Parameters and characteristics for this part

Part	Type	Protocol	Data Rate (Max)	Current - Receiving	Frequency	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	GPIO	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Sensitivity	Mounting Type	Modulation	Memory Size	Power - Output	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting
Infineon Technologies BCM89335L2CUBGT	TxRx + MCU	802.11ac Bluetooth v4.1	433.3 Mbps	110 mA	2.4 GHz	145-WLBGA	4.87	5.41	9	145-UFBGA WLBGA	4.8 V	3 V	I2S SPI UART	-95.5 dBm	Surface Mount	4DQPSK 8DPSK GFSK	640 kB 768 kB	13 dBm	Bluetooth WiFi	85 °C	-40 °C	340 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 14.78
	Digi-Reel®	1	$ 14.78
	Tape & Reel (TR)	5000	$ 8.73

General part information

IC RF TxRx + MCU Bluetooth, WiFi 802.11ac, Bluetooth v4.1 2.4GHz 145-UFBGA, WLBGA
