98133.1

Active

Conta-Clip, Inc.

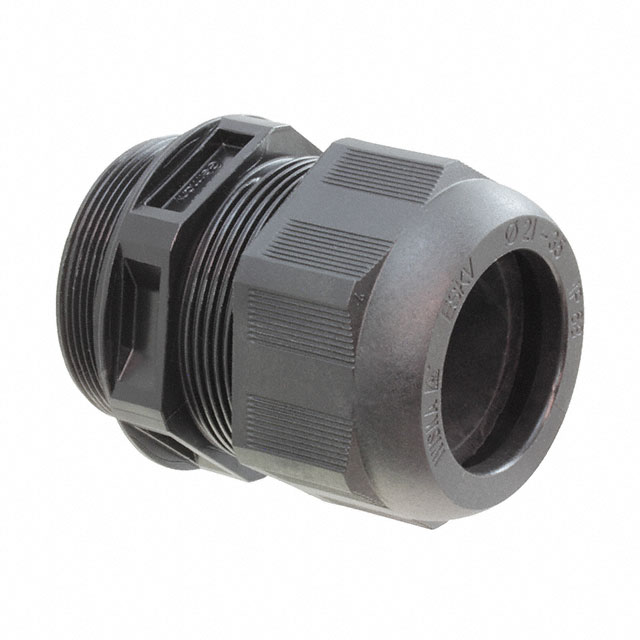

CABLE GLAND 21-35MM M50 POLYAMID

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

CABLE GLAND 21-35MM M50 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	98133.1

Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Outside Cable Diameter (Max) [Max] [diameter]	35 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.378 in
Outside Cable Diameter (Min)	21 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.827 in
Panel Hole Size	50 mm
Panel Hole Size	1.969 in
Thread Length	0.55 in
Thread Length	13.97 mm
Thread Size	M50x1.5
Type	Cable Gland

Part	Panel Hole Size	Panel Hole Size	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Thread Length	Thread Length	Ingress Protection	Thread Size	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)
Conta-Clip, Inc. 98133.1	50 mm	1.969 in	Black	35 mm	1.378 in	Cable Gland	0.55 in	13.97 mm	IP68 - Dust Tight Waterproof	M50x1.5	Polyamide (PA) Nylon	0.827 in	21 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M50x1.5 Black

Technical documentation and resources

No documents available
